Winery And Brewery 10 Tons 0C R410a Air Cooled Glycol Chiller

Characteristic

Outlet temperature range: -15 deg C ~+35 deg C

Condenser: Air cooling

Evaporator: Tank with coil / shell and tube / PHE

Refrigerant : R 410A / R407c / R 22 / R404A

24/7 Online Support

86-17686681005

Description

1. Excellent cooling, quiet with low electric consumption.

2. Accurately maintains temperature range from 3℃ to 50℃,Support customized cooling - 25 ℃

3. Support customized to RS485 communication function to realize automatic running.

4. Refrigerant Type:Optional R407C,R410A,R134A,R404A


Parameter

Model MG-8C(D)
Cooling capacity 0℃ kw 16.2
-5℃ kw 13.8
Power kw 8.22
Power input 3PH-380V-50Hz
Refrigerant Type R22/R407C
Control Thermostatic   expansion valve
Compressor Type Hermetic   scroll type/piston type
Power kw 3.5*2
Evaporator Type High   efficiency copper tube shell and tube type
m³/h Flow 0℃ 3.07
-5℃ 2.84
Inlet/Outlet DN32
Condenser Type High   efficiency hydrophilic aluminum foll finned type
kw Power 0.24*2
pump Type Centrigual   water pump
Power kw 0.55
lift m 20

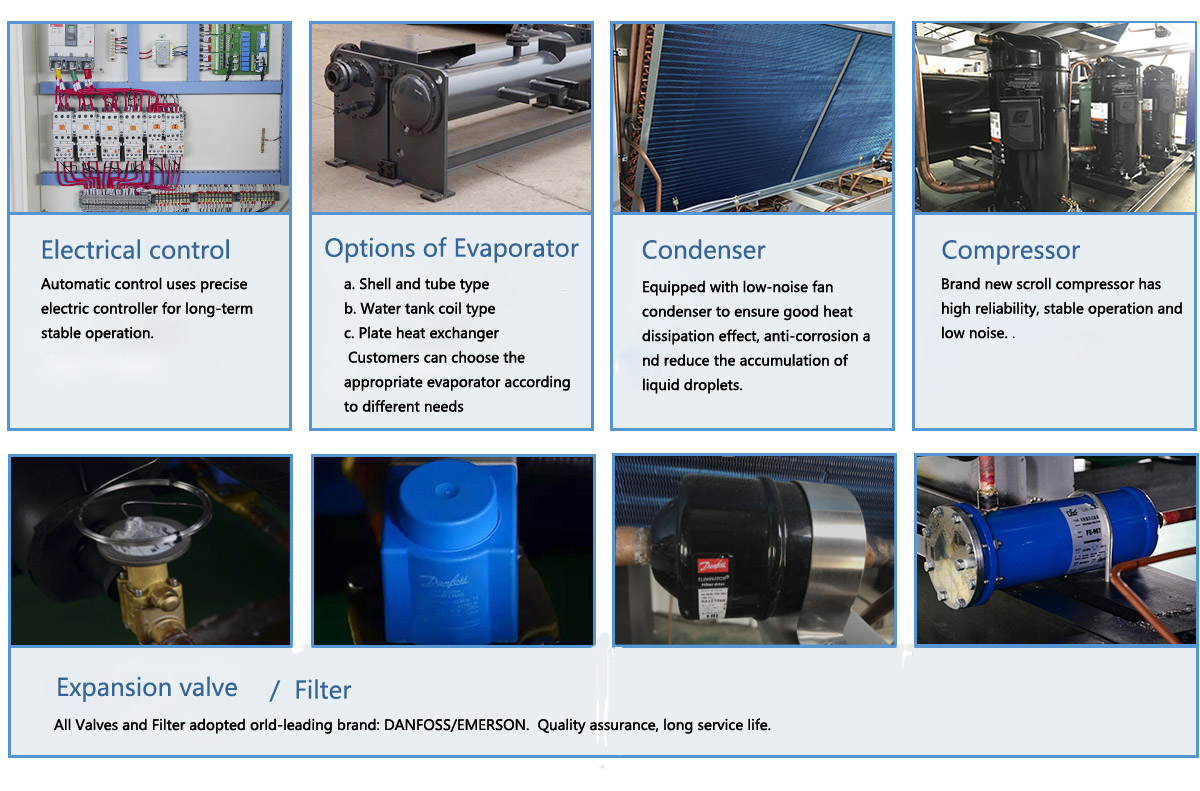

Details

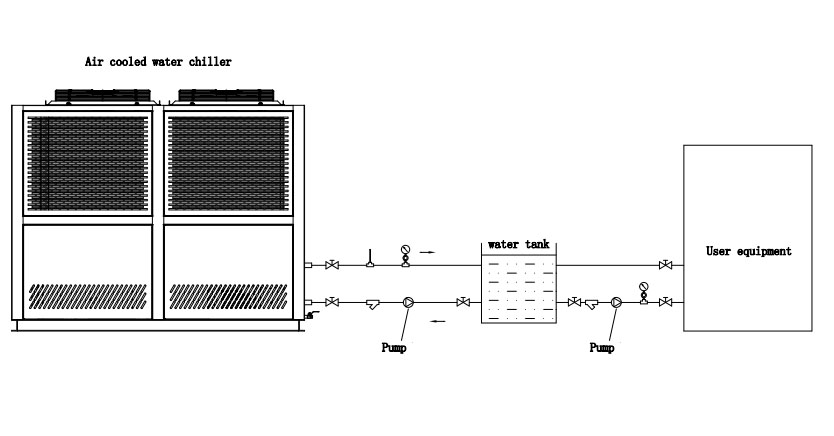

Structural

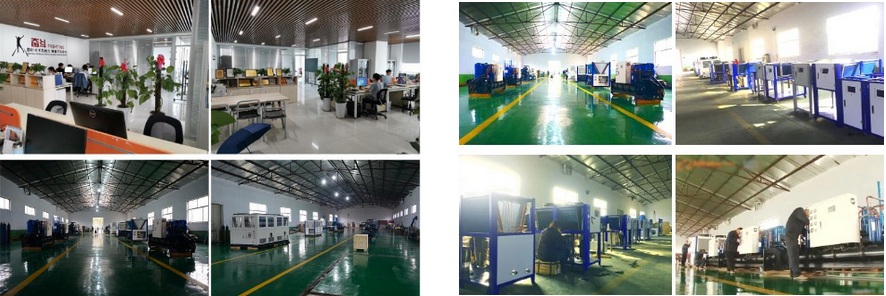

About US

Jinan Mgreenbelt Machinery Co., Ltd. is a professional industrial Refrigeration Solution Provider. It specializes in innovating and manufacturing of industrial water chillers used in plastic industry, electroplating, electronics, chemical, pharmaceutical, food processing, brewery plant, beverage production line, refrigeration and other industries since 2003. Our portfolio comprises of air cooled scroll chiller, air cooled screw chiller, water cooled scroll chiller, water cooled screw chiller and cabinet air conditioner.
The extensive Mgreenbelt chiller product line was developed based on decades of knowledge and industry leadership, and includes, screw and scroll compressor chillers, ranging in capacities from 2 to 300+ tons.
