Energy-Saving Winery Glycol Chillers

Characteristic

Model: MG-15C(D)

Outlet temperature range: -15 deg C ~+35 deg C

Condenser: Air cooling

Evaporator: Tank with coil / shell and tube / PHE

Refrigerant : R 410A / R407c / R 22 / R404A

24/7 Online Support

86-17686681005

Description

Mgreenbelt designs and manufactures dependable winery chillers, traditionally Standard Flow Air Cooled Portable Chillers. Built using the highest-grade materials, our industrial winery chillers are designed to serve you for many years to come.

Winemaking is a sensitive and sophisticated process that requires precise temperature control. Various wines require unique process temperatures to preserve taste, color, and aroma.


Ideal Fermentation Temperatures for Wines

Like brewery chillers, industrial winery chillers are low-temperature chillers suited for mid to low-temperature operation (between 40°F and 20°F). The most common types for wineries are known as glycol chillers. Propylene glycol is an anti-freeze agent capable of chilling products to very low temperatures.

The following are some benefits of utilizing a wine glycol chiller in your winemaking:

Glycol chillers can cool your wines to sub-zero temperatures without freezing the insides of the winemaking vessel.
Using a closed-loop glycol/water mix rather than city water for cooling helps prevent corrosion and clogging up of your tubing.
Glycol can provide additional lubrication for your chiller pumps.
Glycol chillers have greater cooling efficiencies than water-only chillers.
Portable glycol chiller designs are available to suit space-constrained applications.

Parameter
Air cooled scroll chiller
Model MG-3C MG-5C MG-6C MG-8C MG-10C MG-12C MG-15CD MG-20CD MG-25CD MG-30CT MG-40CF MG-50CF
Cooling capacity 0 kw 6.8 10.5 12.2 16.2 22.8 24.8 33.4 44.2 50.5 66.9 87.7 110.6
-5 kw 5.7 8.9 10.3 13.8 19.3 21 28.4 37.6 43 56.8 74.5 94
Power kw 3.45 5.45 6.31 8.22 10.54 12.33 15.84 20.51 23.52 31.81 40.18 47.92
Power input 3PH-380V-50HZ
Refrigerant Type R22/R407C
Control Thermostatic expansion valve
Compressor Type Hermetic scroll type
Power kw 2.84 4.36 5.2 3.5*2 4.4*2 5.2*2 6.5*2 8.7*2 10.2*2 8.7*3 8.7*4 10.2*4
Evaporator Type SS Tank with coil or Shell and tube
Flow m³/h
0 1.29 1.99 2.31 3.07 4.32 4.70 6.33 8.37 9.57 12.68 16.62 20.96
-5 1.17 1.83 2.12 2.84 3.97 4.32 5.84 7.73 8.85 11.68 15.33 19.34
Capacity L 50 70 70 120 200 200 270 350 350 450 580 580
Inlet/Outlet DN25 DN32 DN32 DN40 DN40 DN40 DN50 DN50 DN50 DN65 DN65 DN65
Condenser Type High efficiency hydrophilic aluminum foll finned type
Power kw 0.19 0.52 0.52 0.24*2 0.46*2 0.46*2 0.55*2 0.78*2 0.78*2 1.32*2 0.78*4 0.78*4
pump Type Centrigual water pump
Power kw 0.37 0.55 0.55 0.55 0.55 0.55 1.5 1.5 1.5 2.2 2.2 2.2
lift m 24 25 24 20 20 20 20 20 20 21 20 19
Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension L mm 1120 1220 1220 1430 1610 1610 1870 2120 2120 2700 2300 2300
W mm 600 690 690 780 820 820 900 1000 1000 1120 1860 1860
H mm 1200 1200 1200 1450 1500 1500 1600 1720 1720 1800 1800 1800
Wight kg 150 200 230 310 450 500 750 850 900 1150 1350 1600

Details

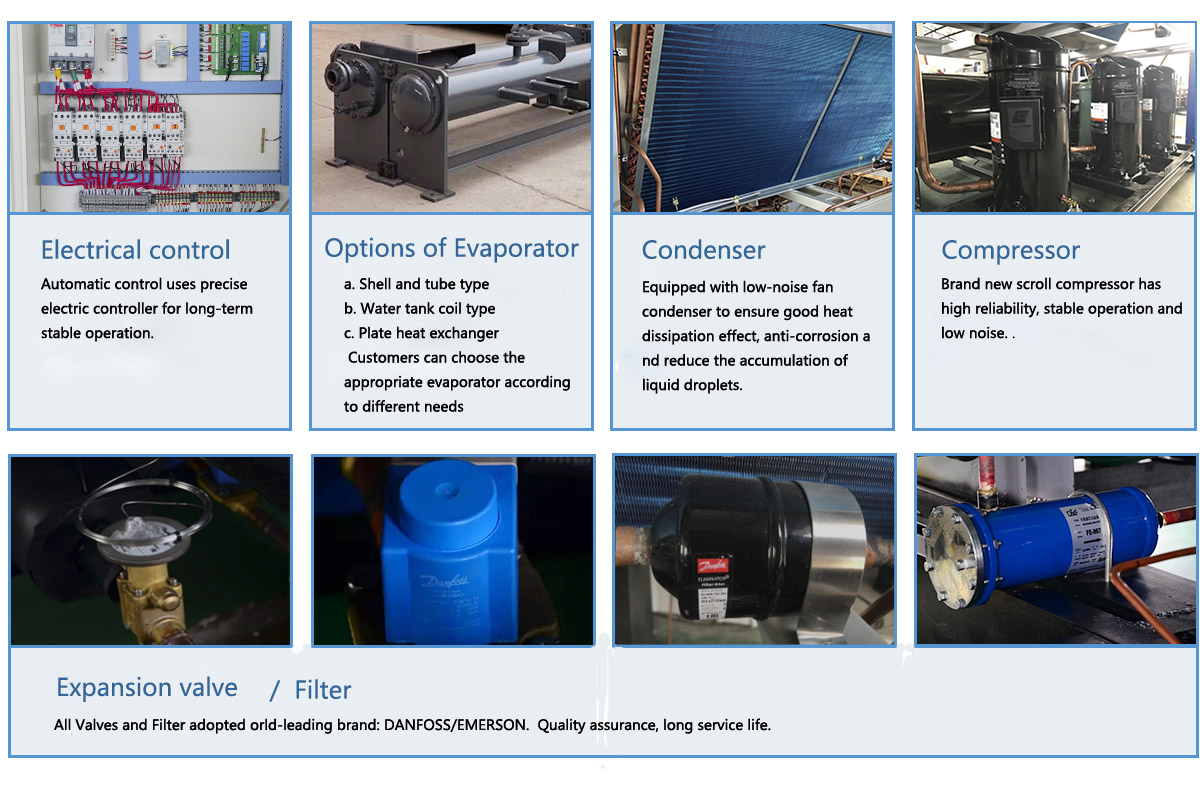

Structural
How Do Winery Chillers Work?

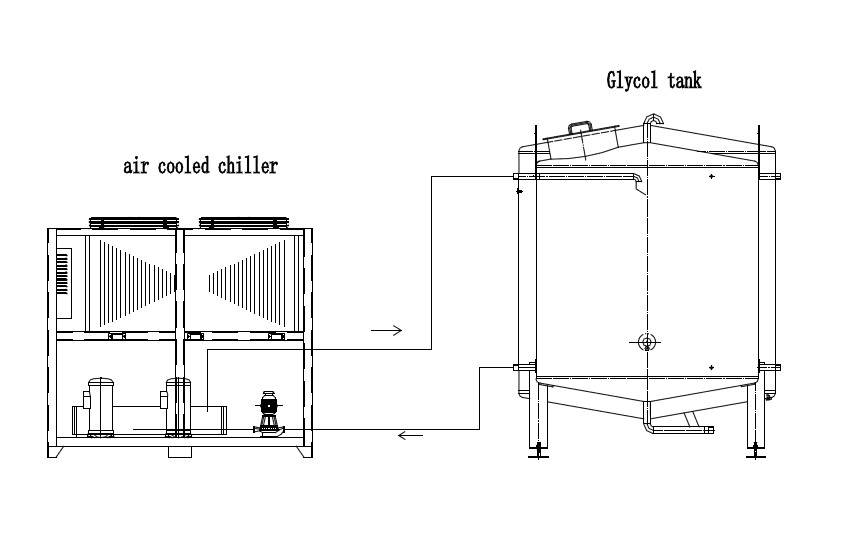

Winery glycol chillers consist of a closed-loop tubing attached to the heat exchanger of a winemaking vessel. Glycol or a mixture of water and glycol (some wineries use a water/glycol ratio of 67% to 33%) flows through the circuit and cools the vessel by extracting heat from the heat exchanger.
Winery Chiller Sizing

Our 2-ton air cooled chiller is adequate for most winery applications. However, you can select the perfect chiller for your winemaking depending on the capacity needed for your process. To find out the ideal chiller tonnage and sizing capacity for your needs, please use our chiller capacity calculator.
Better Winery Temperature Control with Mgreenbelt Chillers

For the best winery process chiller for your application, contact us today! We offer same-day quotes and around-the-clock technical support to assist with any of our products.
