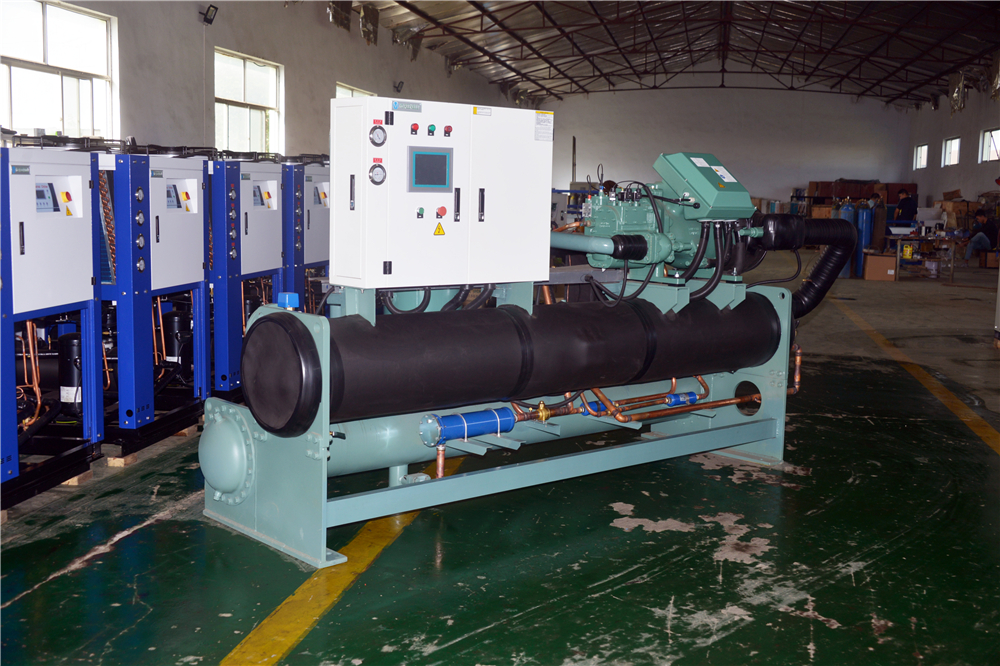

-15C Water Cooled Water Chiller For Chemical Pharmaceutical China Manufacturer-What we do-Shandong Mgreenbelt Machinery Co., Ltd.

Description

Low-temperature chiller is also called glycol chiller or glycol chiller system specially designed for some certain industrial applications which need a lower(below zero) chilled liquid.

As a professional low-temperature chillers manufacturer since 2003, MGREENBELT glycol chillers offering continuous coolant glycol water with a temperature from -35° to +5°C with cooling capability from 2KW to 1000KW and temperature stability of ±0.5℃ to ±1℃.

High-quality low-temperature chiller designed by Mgreenbelt features outstanding advantages as below:

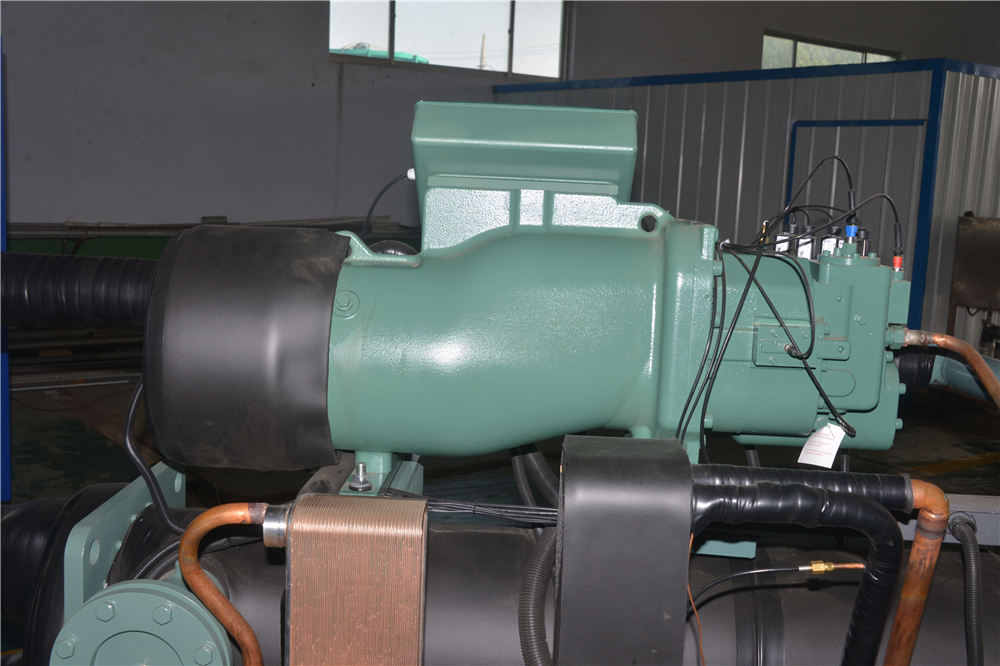

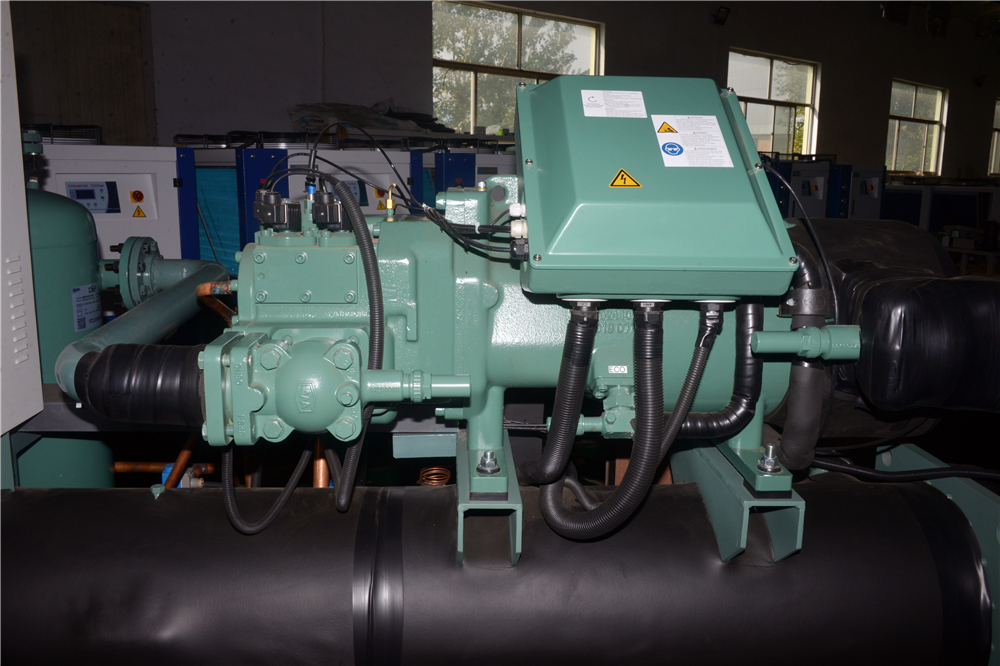

1. Selected imported semi-hermetic scroll, piston, or screw compressors have high refrigeration efficiency and excellent cooling performance.

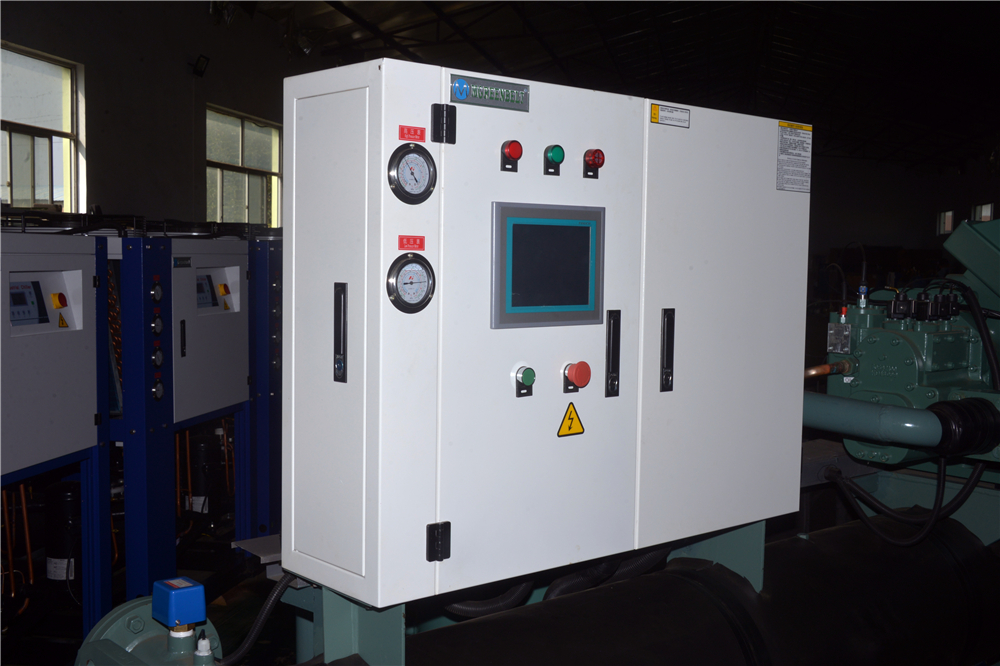

2. The original Schneider Electric guarantees low-temperature chiller safe operation and long working hours.

3. Low-temperature chiller with high-efficiency water pump, large flow, power-saving, and durable.

4. The concise design of our low-temperature chiller is easy to install, easy to operate, and easy to clean and maintain.

5. The low-temperature chiller with dry shell and tube or stainless steel plate evaporator with high energy efficiency.

6. High-efficiency fin condenser for air-cooled low-temperature chiller.

7. Dry Shell and Tube Condenser—Water-cooled low-temperature chiller.

8 . R410A, R404A refrigerant is charged for low-temperature chiller.

9. 380V / 50HZ 3PH standard design power supply voltage, can be customized according to different requirements of customers.

Parameter

Type			MG-90W	MG-130W	MG-160W	MG-180W	MG-220W	MG-240W	MG-280W
Cooling Capacity	-15℃	kw	42	60	78	85	104	113	132
Cooling Capacity	-20℃	kw	35	48	63	70	84	91	107
Power			3PH-380V-50Hzor as customer need
Refrigerant	Type		R22/R404A/R134A/R507
Refrigerant	Control		Thermostatic expansion valve
Compressor	Type		semi-closed screw type
	kw Power		22	29	36	39	47	50	58
	Start		Y-△
	Capacity		33-66-100（%）			25-50-75-100（%）
Evaporator	Type		High efficiency copper tube shell and tube type
	m³/h Flow	-15℃	7.2	10.3	13.4	14.6	17.8	19.4	22.6
	m³/h Flow	-20℃	6.0	8.2	10.8	12.0	14.4	15.6	18.3
	Inlet/Outlet		DN65	DN65	DN80	DN80	DN80	DN100	DN100
Condenser	Type		High efficiency threaded copper tube shell and tube type
	m³/h Flow		12	17	21	23	28	31	36
	Inlet/Outlet		DN65	DN65	DN80	DN80	DN80	DN100	DN100
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	mm	2200	2200	2200	2500	2800	2800	3200
	W	mm	1000	1000	1000	1000	1100	1100	1100
	H	mm	1400	1400	1400	1500	1500	1500	1500
kg Weight			660	700	800	975	1000	1150	1250

Type			MG-330W	MG-350W	MG-390W	MG-460W	MG-480W	MG-540W	MG-580W	MG-600W	MG-700W
Cooling Capacity	-15℃	kw	156	167	182	221	232	255	278	288	336
Cooling Capacity	-20℃	kw	126	135	148	180	188	207	225	233	271
Power			3PH-380V-50Hz, or as customer need
Refrigerant	Type		R22/R404A/R134A/R507
Refrigerant	Control		Thermostatic expansion valve
Compressor	Type		semi-closed screw type
	kw Power		67	73	80	96	98	110	118	123	141
	Start		Y-△
	Capacity		25-50-75-100（%）
Evaporator	Type		High efficiency copper tube shell and tube type
	m³/h Flow	-15℃	26.7	28.6	31.2	37.9	39.8	43.7	47.7	49.4	57.6
	m³/h Flow	-20℃	21.6	23.1	25.4	30.9	32.2	35.5	38.6	39.9	46.5
	Inlet/Outlet		DN100	DN125	DN125	DN125	DN125	DN125	DN150	DN150	DN150
Condenser	Type		High efficiency threaded copper tube shell and tube type
	m³/h Flow		42	45	49	60	62	69	75	78	90
	Inlet/Outlet		DN100	DN125	DN125	DN125	DN125	DN125	DN150	DN150	DN150
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	mm	3200	3500	3500	3500	3500	3500	3800	3800	3800
	W	mm	1100	1200	1200	1200	1200	1

Details

Chapter 1: What is a low-temperature chiller?
Low-temperature chiller is a specially designed and manufactured industrial process chiller.

From the name of the low-temperature chiller, we can understand this kind of chiller is for low-temperature cooling purposes.

Be different from other regular process chillers, low-temperature chiller offers continuous cooling sources with a steady coolant temperature controlling range from -40° to +30°C.

Chapter 2: Why we need a low-temperature chiller?
Low-Temperature Chillers that can cool process fluids in temperatures as low as -40°C.

But why we need a low-temperature chiller?

For some special industries or processes, they required low-temperature fluids.

Low-temperature chillers are the ideal cooling system for laboratories and semiconductors, medical, pilot plants and custom applications that require accurate and precise ultra-low temperature control.

Chapter 3: Benefit of using a low-temperature chiller
By using a low-temperature chiller will provide a steady low-temperature cooling source for some special industries usage.

Some industrial processes have operating conditions that are below 32°F. In this condition, it is important to have the right equipment, otherwise, the business process could fail.

Even though the conditions are less than ideal, this is where low-temperature chillers shine, as these machines or processes make sure everything runs smoothly.

This is the benefit of using a low-temperature chiller.

Chapter 4: Applications of low temperature chillers
Low-temperature chillers are widely used in industrial applications and processes.

With the development of Industries development, many applications demanding Low-Temperature Chillers.

MGREENBELT low-temperature chillers have reached various parts of the planet.

Over the years, MGREENBELT has worked with TOP 500 companies from different industries and helped them with their refrigeration and cooling needs.

Our Major companies such as CocaCola, Shell Oil, Exxon, Dow Chemical, and Lubrizol among many others – a good chunk of which are Fortune 500 companies – still employ our machines in their daily processes.

Low-temperature chilling system will be used across a wide range of industries and applications.
