Description

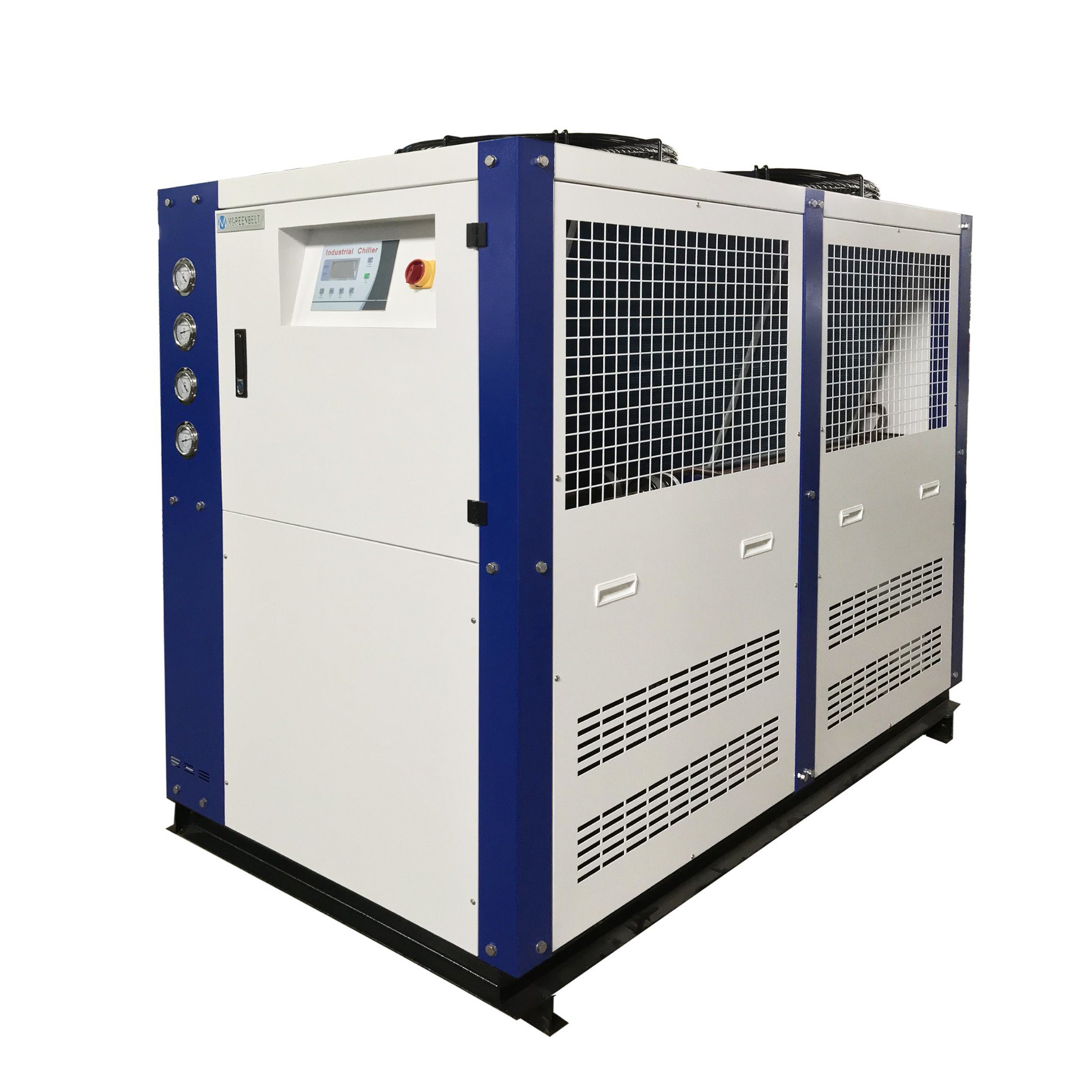

10 HP 20 HP Brewery Glycol Cooling Beer Chiller
Breweries
In breweries, using a glycol chiller allows producers to lower the temperature of the product dramatically over a short period of time, depending on the production needs.
For cooling in brewing, there are several processes in which it is important to lower or maintain the temperature – such as cooling the beer sharply after fermentation, or maintaining a steady temperature during fermentation (which generates heat), or cooling the wort after the initial boiling process.
Wineries
Winery chillers are used in the fermentation process of winemaking to control the temperature during fermentation. The temperature of the glycol solution varies depending on the type of wine being made and each winemaker’s preference, but most winery chillers operate in the 2 Deg C to 10 Deg C range (7 Deg C to 15 Deg C for wine containers).
Dairy Product
A properly designed dairy glycol chiller can cool the milk very rapidly to help keep milk temperatures (and bacteria growth) under control as it is transferred from the milking parlor to his insulated tank.

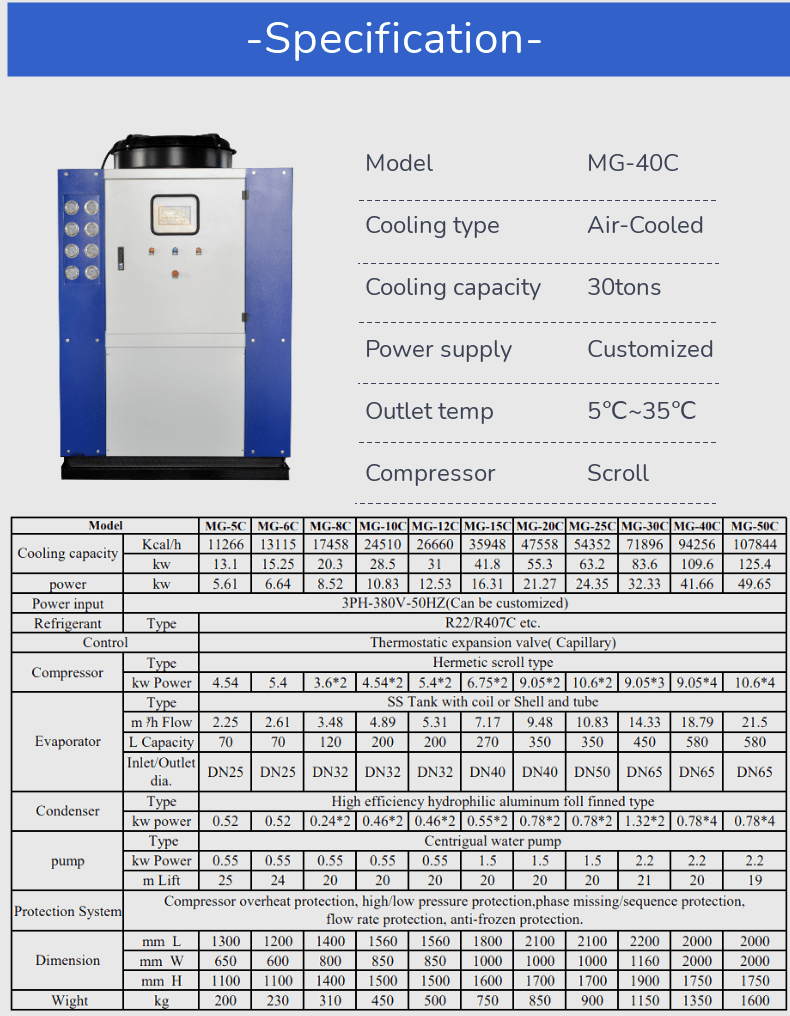

Parameter
| Model | MG-3C | MG-5C | MG-6C | MG-8C | MG-10CD | MG-12CD | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | MG-50CF | ||
| Cooling capacity | 0℃ | kw | 6.8 | 10.5 | 12.2 | 16.2 | 22.8 | 24.8 | 33.4 | 44.2 | 50.5 | 66.9 | 87.7 | 110.6 |
| -5℃ | kw | 5.7 | 8.9 | 10.3 | 13.8 | 19.3 | 21 | 28.4 | 37.6 | 43 | 56.8 | 74.5 | 94 | |
| Power | kw | 3.45 | 5.45 | 6.31 | 8.22 | 10.54 | 12.33 | 15.84 | 20.51 | 23.52 | 31.81 | 40.18 | 47.92 | |
| Power input | 3PH-380V-50HZ | |||||||||||||
| Refrigerant | Type | R22/R407C | ||||||||||||
| Control | Thermostatic expansion valve | |||||||||||||
|
Compressor |

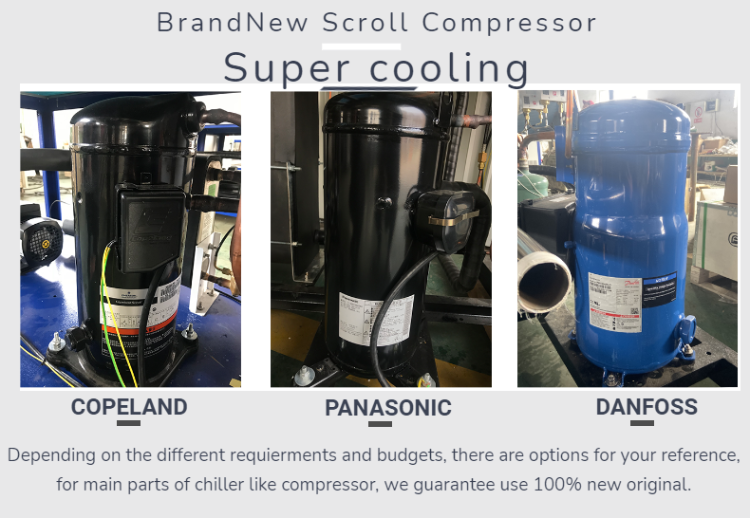

Type | Hermetic scroll type | ||||||||||||
| Power | kw | 2.95 | 4.2 | 5.4 | 7.4 | 4.2*2 | 5.4*2 | 6*2 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | 10.6*4 | |

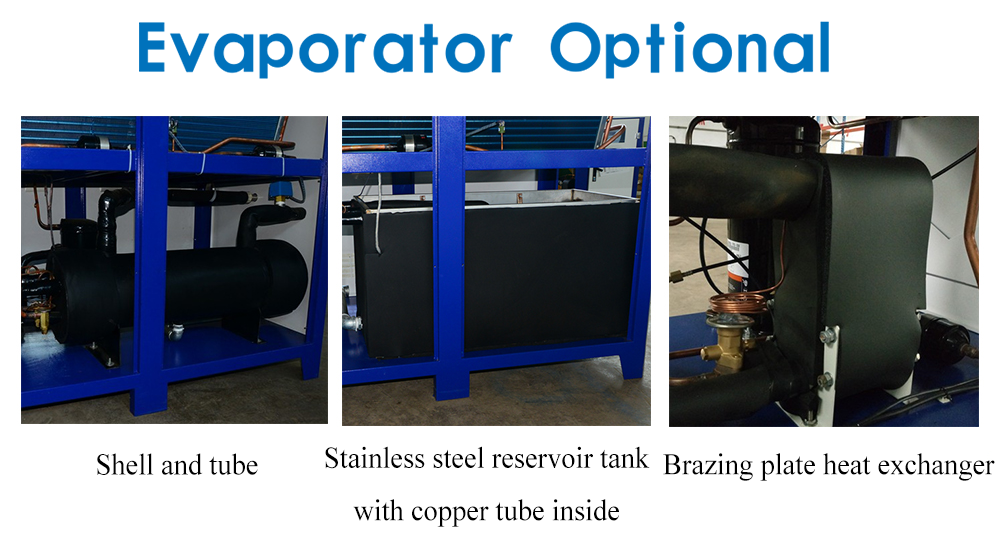

| Evaporator | Type | SS Tank with coil or Shell and tube | ||||||||||||
|
m³/h Flow |
0℃ | 1.29 | 1.99 | 2.31 | 3.07 | 4.32 | 4.70 | 6.33 | 8.37 | 9.57 | 12.68 | 16.62 | 20.96 | |
| -5℃ | 1.17 | 1.83 | 2.12 | 2.84 | 3.97 | 4.32 | 5.84 | 7.73 | 8.85 | 11.68 | 15.33 | 19.34 | ||
| Capacity | L | 50 | 70 | 70 | 120 | 200 | 200 | 270 | 350 | 350 | 450 | 580 | 580 | |
| Inlet/Outlet | DN25 | DN25 | DN32 | DN32 | DN32 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | DN80 | ||
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | ||||||||||||
| kw Power | 0.24 | 0.52 | 0.52 | 0.24*2 | 0.46*2 | 0.46*2 | 0.55*2 | 0.78*2 | 1.7*2 | 0.78*3 | 1.5*2 | 1.7*4 | ||
| pump | Type | Centrigual water pump | ||||||||||||
| Power | kw | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | |
| lift | m | 24 | 25 | 24 | 20 | 20 | 20 | 20 | 20 | 20 | 21 | 20 | 19 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||||||||
| Dimension | L | mm | 1120 | 1220 | 1220 | 1430 | 1610 | 1610 | 1870 | 2120 | 2120 | 2700 | 2450 | 2300 |
| W | mm | 570 | 600 | 690 | 780 | 820 | 820 | 900 | 1000 | 1000 | 1120 | 1400 | 1860 | |
| H | mm | 1150 | 1200 | 1200 | 1450 | 1500 | 1500 | 1600 | 1720 | 1720 | 1800 | 2100 | 1800 | |
| Wight | kg | 150 | 200 | 230 | 310 | 450 | 500 | 750 | 850 | 900 | 1150 | 1350 | 1600 | |
Details

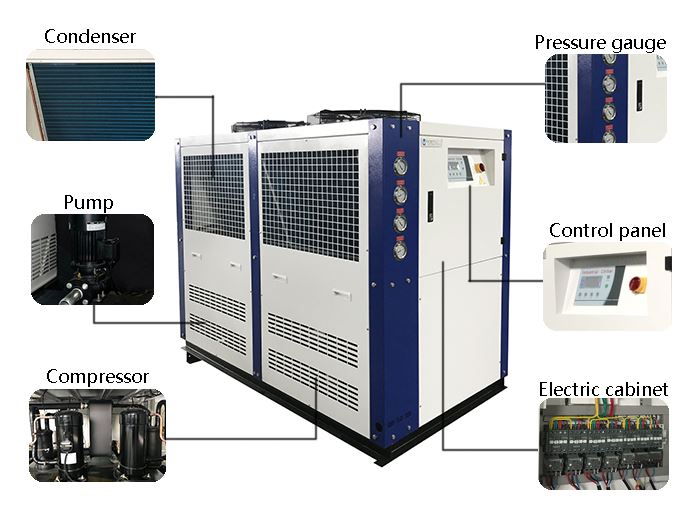

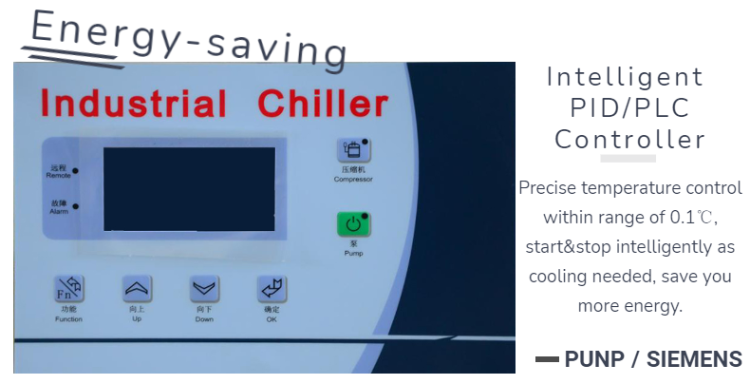

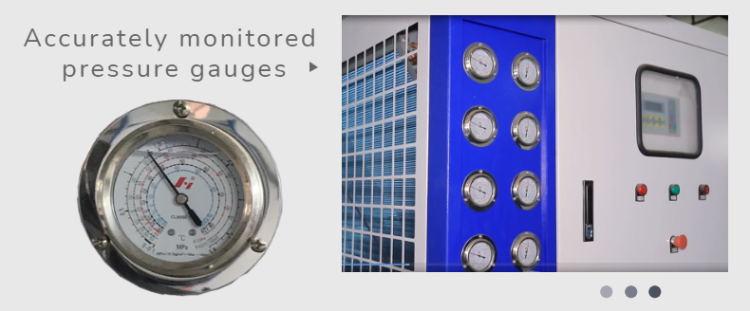

10 HP 20 HP Brewery Glycol Cooling Beer Chiller details

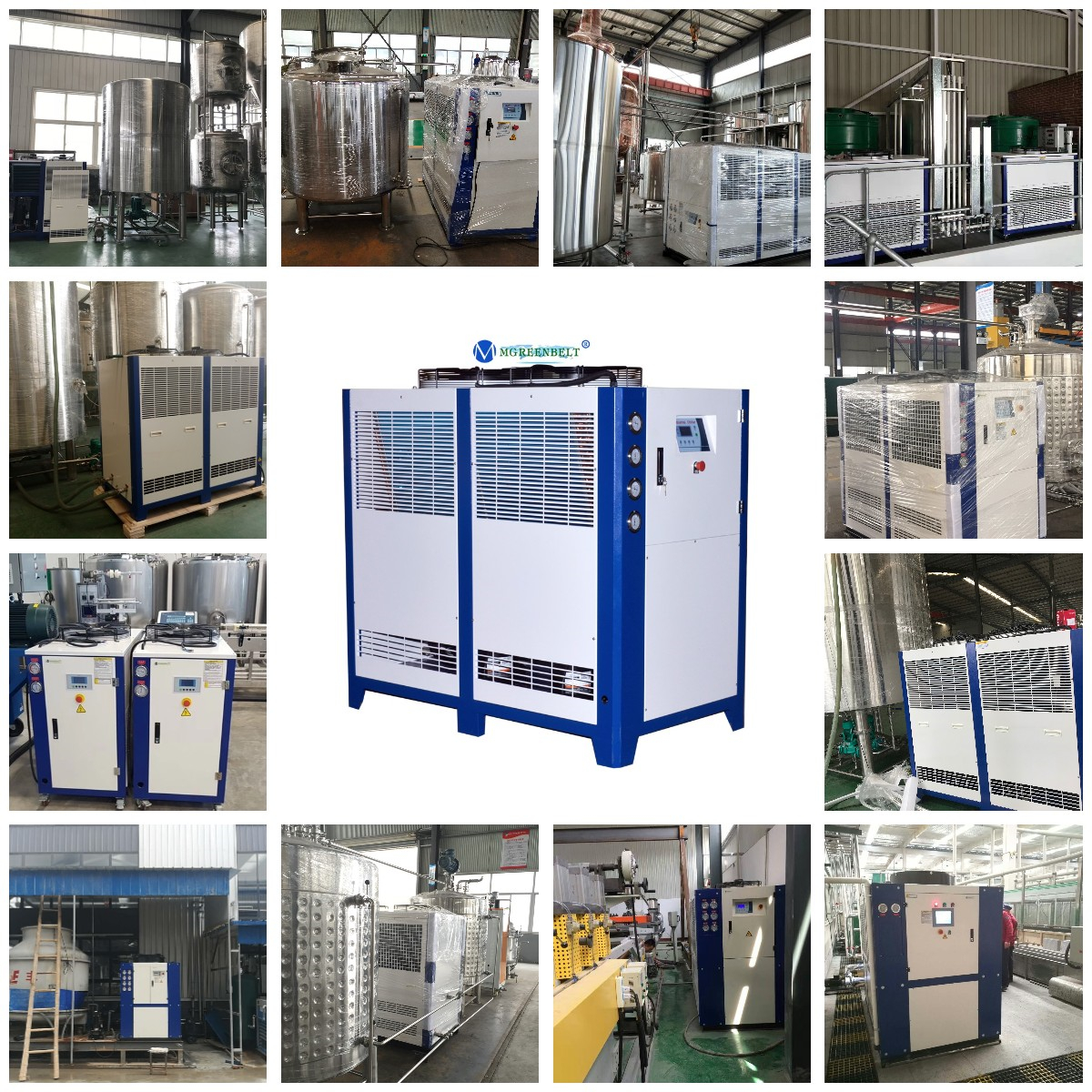

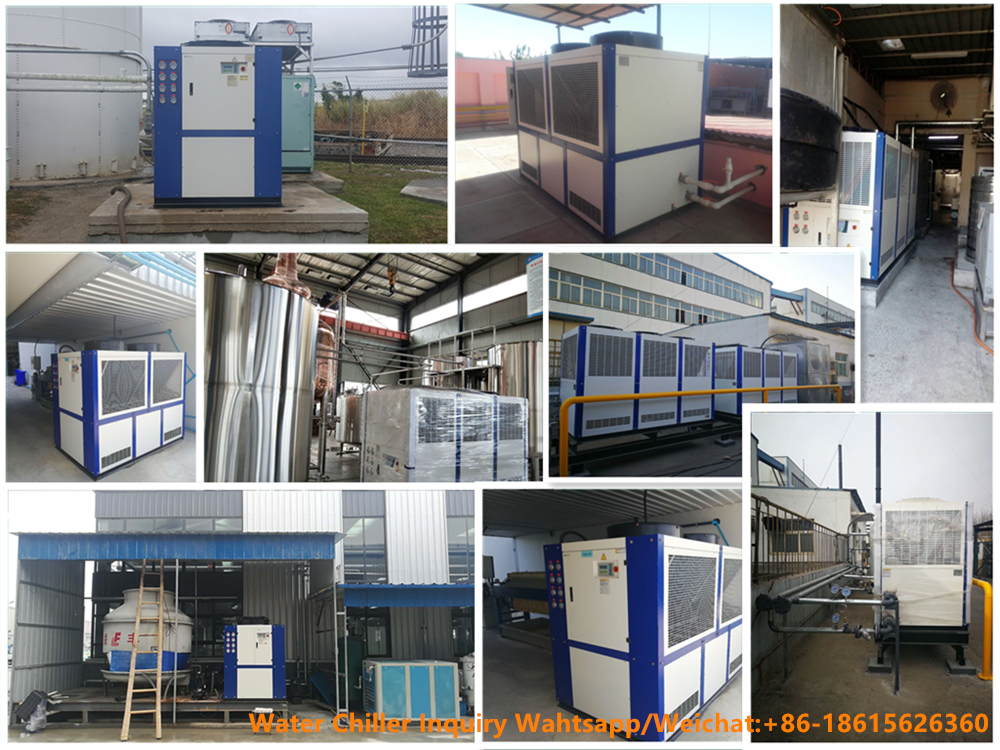

10 HP 20 HP Brewery Glycol Cooling Beer Chiller customer site

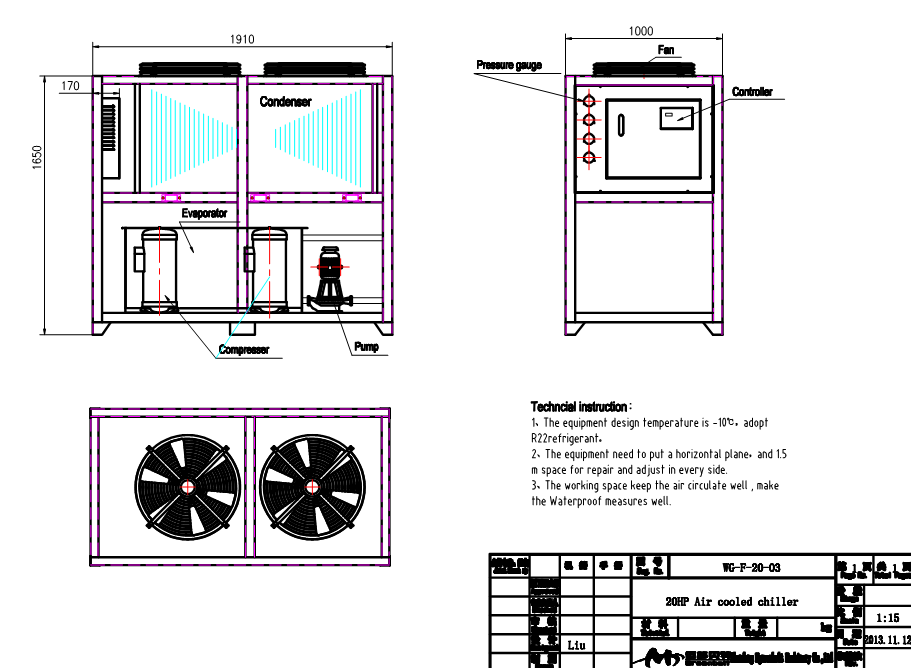

Structural
