Smaller 5HP 10 HP Brewing low temperature glycol chiller machine

Characteristic

Model NO.MG-5C
Application Fields:Smaller 5HP 10 HP Brewing low temperature glycol chiller machine
Application Machine : Brewery, beverage, milk cooling
Certification:CSA, RoHS, UR, ISO, UL, CE, CCC, SGS for Chiller
Cooling Capacity:  8.9kw @-5 Deg C
Outlet Temperature: -10 C ~+35 C Can Set as Real Need
Water Chiller Compressor Type: Hermetic Scroll Chiller
Compressor Power: 4.54Kw
Compressor System Quantity: 3
Condenser: Air Cooled
Cooling Tower and Pump:Complete Set From Us
Evaporator: Tank with Coil or PHE
Water Flow:1.83 M3/H @-5 Deg C
Refrigerant: R22 / R407c / R134A /R404A / R507c
Power Supply: 3 Phase- 220V / 380V/440V/415V/ 460V/480V 50Hz 60h
Chiller Inlet/Outlet Pipe: DN25
Trademark: MGREENBELT
Transport Package: Wooden Case
Origin: China
HS Code; 84186990

24/7 Online Support

86-17686681005

Description

Smaller 5HP 10 HP Brewing low temperature glycol chiller machine

1. MGREENBELT  is a professional air cooled chiller manufacturer and supplier in China for over 18 years.

2. An air-cooled chiller is some kind of air chiller that used air-cooled type condenser as the heat exchanging devices.
3. An air-cooled chiller is in the range of air chiller and air cooling chiller, sometimes also called air-cooled packaged chiller or portable air chiller, air to water chiller, and air-cooled water chiller.
4. Air-cooled chiller, with a wide range of types, capacities, and sustainable refrigerant options, MGREENBELT is a leader in air-cooled chiller design and manufacturing.
5. As a professional air cooled chiller supplier in China, MGREENBELT is specialized in manufacturing all kinds of air-cooled chillers since the year of 2003.
6. MGREENBELT is supplying a complete line of air-cooled chillers, this air-cooled chiller has a cooling capacity of 2.7KW to 530 KW and water temperature control range from 7℃ to 30℃, or lower temperature as customer project need, while the water temperature stability is +/-0.1℃ to +/-2℃.

7. Air-cooled chiller designed and manufactured by MGREENBELT has 3 or 4 refrigerant circuits for air chiller models from MG-30C to MG-180C depending on chiller refrigeration capacity.

Parameter

Smaller 5HP 10 HP Brewing low temperature glycol chiller machine

Model

MG-5C

Power Supply

3 Phase-380V -50Hz or as customer need

Total Power input (KW)

5.45

Outlet Temperature

-5~+35 deg C (user can set as working need)

Cooling Capacity

Kw

8.9

Ton

2.5

Kcal/h

7654

Refrigerant

Type

R407c

Control type

Thermostatic expansion valve

Compressor

Type

Hermetic scroll

Quantity

1

Motor compressor output(kw)

4.36

Cooling capacity (kw)

8.9

Start method

Direct starter

Evaporator

Type

 Tank with coil Or Shell and tube

Material

stainless steel water tank internal, copper coil

Tank volume (L)

70

Insulation

Polyethylene 25mm thickness

Chilled water flow(m3/h )

2.25

Inlet/outlet dia.(mm)

DN25

Pump

Power (Kw)

0.55

Pressure (Bar)

2

Condenser

Type

High efficiency aluminum finned type

Cooling air flow(m3/h)

5000

Power(KW)

0.55

Dimension

L*W*H(mm)

1220*690*1200

N.G

Kg

200

Protection system

High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.

Details

Smaller 5HP 10 HP Brewing low temperature glycol chiller machine

1. The Air cooled chiller is to provide cooling process to plastic molds to improve molded products quality and cut down injection cycle time. Hence maximizes plastic molding machines productivity.
2. Installed with import compressors, highly efficient shell condenser and evaporator, excellent cooling, quiet and low electricity consumption.

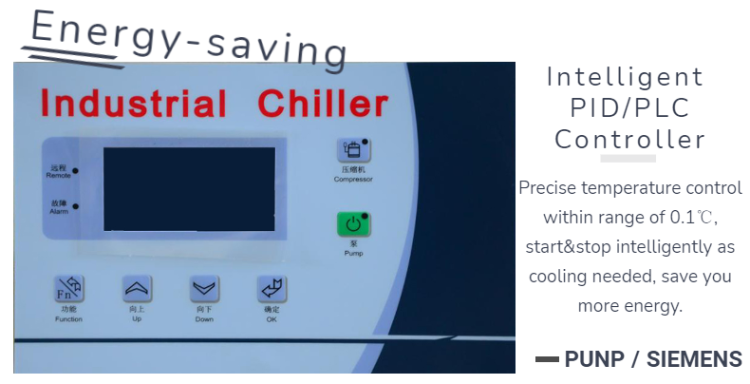

3. Microprocessor control, easy to operate;
4. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;
5. Pipeline well-arranged to save energy;
6. Installed will precise electronic thermostat accurately maintains temperature within 0-60 degree;
7. Installed with current overload protector, high and low pressure switch, electronic timer delay, fault display system;
8. Screen liquid crystal display of chill water out let and inlet with temperatures setting;
9. Single, double or four compressors combination unit available;
10. Industrially designed, elegant and ergonomic.





Smaller 5HP 10 HP Brewing low temperature glycol chiller machine Customer working site



Structural
