Fermenter Cooling 10HP -5 C Glycol Water Chiller For Brewery

Characteristic

Model: MG-10C(D)

Outlet temperature range: -15 deg C ~+35 deg C

Condenser: Air cooling

Evaporator: Tank with coil / shell and tube / PHE

Refrigerant : R 410A / R407c / R 22 / R404A

24/7 Online Support

86-17686681005

Description
Cooling capacity ranges from 8KW to 155KW
Temperature control ranges -15°C to +35°C
Stainless steel water tank and water pump
Air type or water type cooling brewery chiller
Rugged design with low cost of maintenance
High energy efficient Heat exchangers
Evaporative cooling tower and adiabatic fluid cooler
Warranty up to 24 months after first purchase
Parameter

Fermenter Cooling 10HP -5 C Glycol Water Chiller For Brewery

Model

MG-10C(D)

Power Supply

3 Phase-380V -50Hz or as customer need.

Total Power input (KW)

10.54

Outlet Temperature

-15~+35 deg C (user can set as working need)

Cooling Capacity

Kw at +7 deg C outlet

28.5

Kw at 0 deg C outlet

22.8

Kw at -5 deg C outlet

19.3

Refrigerant

Type

R407c / R410a /R404a / R22

Control type

Thermostatic expansion valve

Compressor

Type

Hermetic scroll

Quantity

2

Motor compressor output(kw)

4.52*2 System

Cooling capacity (kw)

14.25*2 System

Start method

Direct starter

Evaporator

Type

Stainless Steep Plate Heat exchanger, or tank with coil

Material

stainless steel

Insulation

Polyethylene 25mm thickness

Chilled water flow(m3/h )

4.89

Inlet/outlet dia.(mm)

DN32

Pump

Power (Kw)

0.55

Pressure (Bar)

20

Condenser

Type

High efficiency aluminum finned type

Cooling air flow(m3/h)

10000

Power(KW)

0.46*2

Dimension

L*W*H(mm)

1610*820*1500

N.G

Kg

450

Protection system

High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.

Details
Fermenter Cooling 10HP -5 C Glycol Water Chiller For Brewery
1. Product Name: Fermenter Cooling 10HP -5 C Glycol Water Chiller For Brewery
2. Cooling capacity: 19.3KW at -5C outlet
3. Output temp. : -5C/-10C/-5C/0C/7C
4. Power supply: 220V, 380-415V, 440V-460V, 50Hz or 60Hz;
5. Color: blue or grey or customized
6. Refrigerant: R22/R407C/R410a/R404a

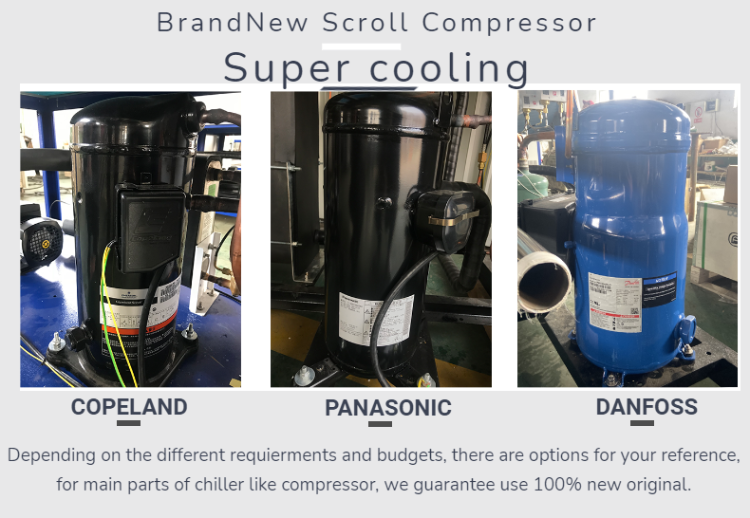

7. Compressor: Hermetic scroll type

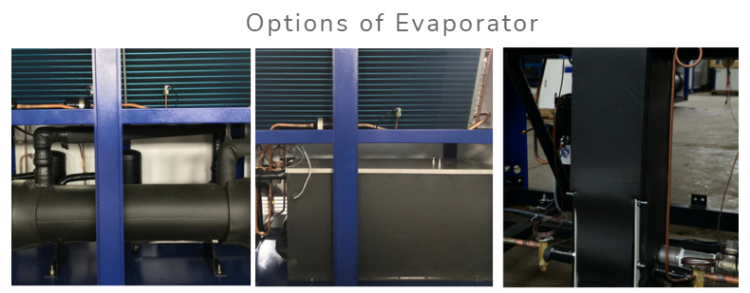

8. Evaporator: High efficiency copper tube shell and tube
9. Condenser: High efficiency hydrophilic aluminum foll finned type

10. Protection System: Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.

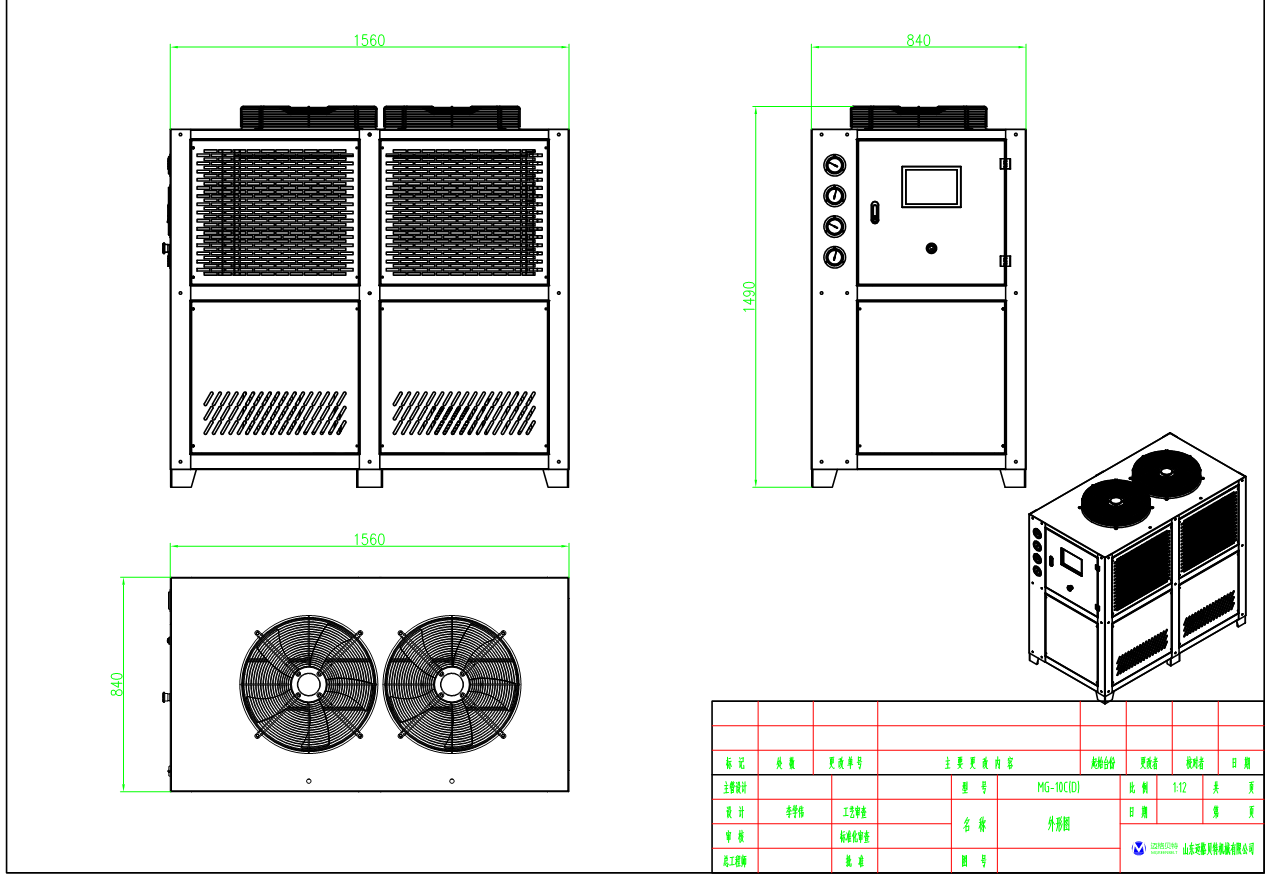

Structural

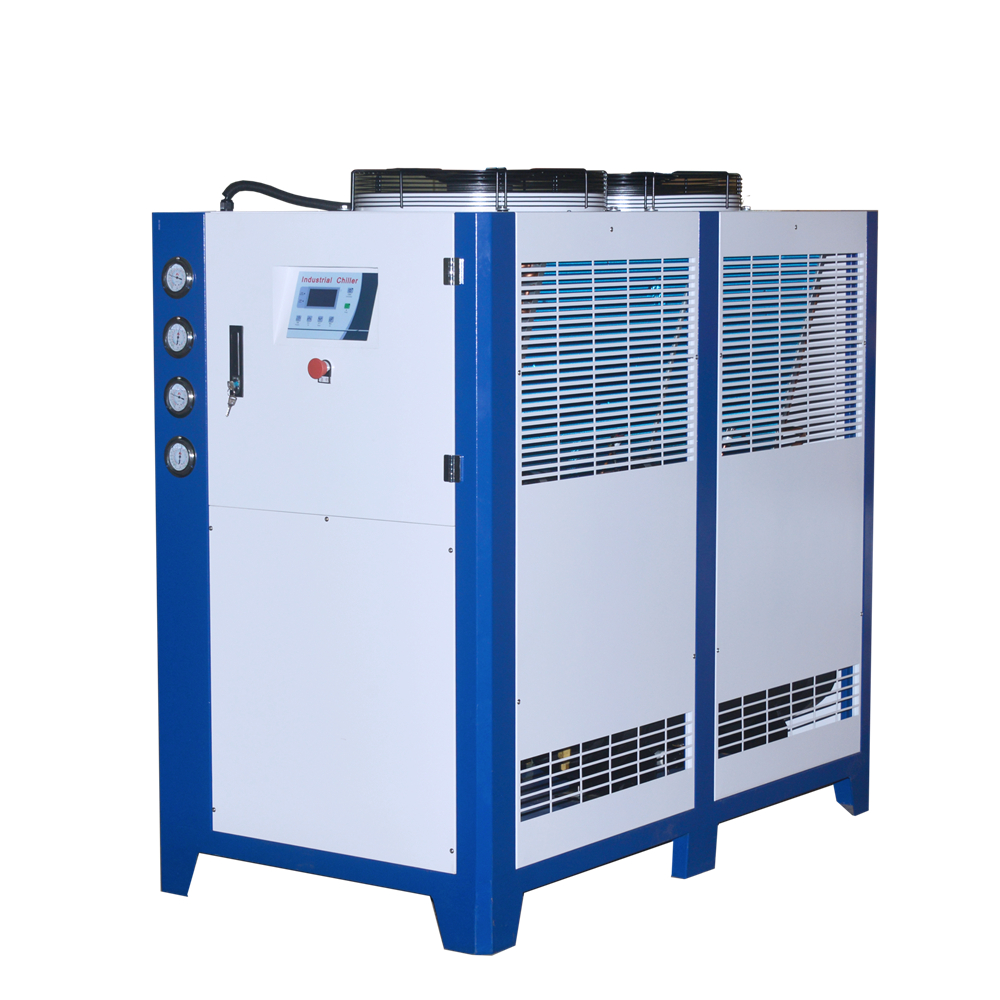

Fermenter Cooling 10HP -5 C Glycol Water Chiller For Brewery Appearance

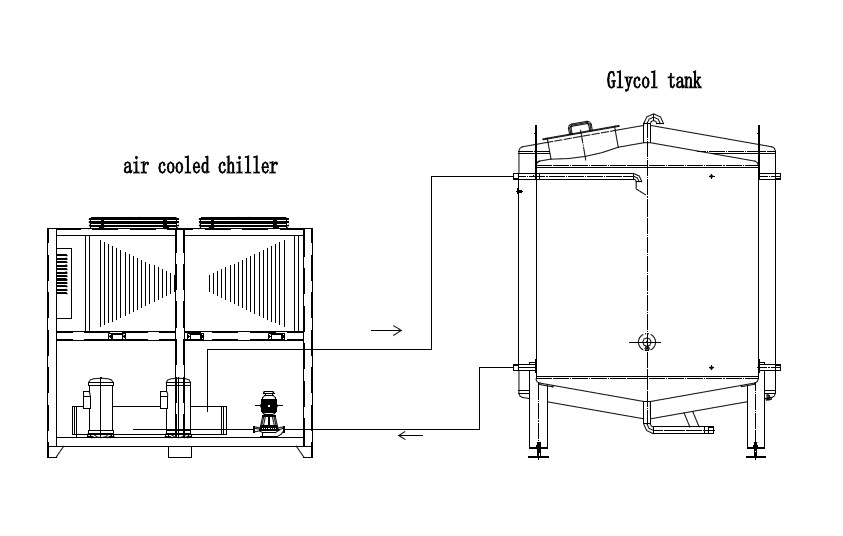

Fermenter Cooling 10HP -5 C Glycol Water Chiller For Brewery  Installation
