Open Type Scroll Chiller

Characteristic

Voltage: 3PH~220V/380V/415V~50HZ/60HZ

Refrigerant: R410a/R407c/R134a/R22

Condenser: High efficiency copper tube shell and tube type

24/7 Online Support

86-17686681005

Description

1. Cooling range: 5 °C ~ 35 °C.

2. Water tank made of SUS304 stainless steel.

3. P.I.D temperature control, temperature control is accurate and reliable.

4. Using an independent anti-freezing temperature controller to prevent freezing.

5. Compressors and pumps are equipped with overload devices.

6. Low and high voltage switch control, flexible and adjustable, well protects the compressor.

7. Hydrophilic chip condensers to have better heat exchange effect.

8. shell and tube evaporators with large heat exchange capacity and stable heat exchange effect.

9. Refrigerant: R22, environmentally friendly refrigerant R410A/R407c/R134a is also optional.


Application:

Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.

Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc

Plastic molding industry - The Water Chiller is to provide a cooling process for better industrial production. In plastic molding industry.

Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.

Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.

Paper and related – printing machine, labelling machine, cardboard making, plastic film machine, etc.

Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc.


Parameter

Model

MG-30W(D)

MG-40W(F)

MG-50W(F)

MG-60W(F)

Cooling capacity

Kcal/h

79120

103716

121604

151790

kw

92.0

120.6

141.4

176.5

Power

kw

29.35

38.4

44.6

57

Power supply

3 Phase-380V-50Hz

Refrigerant

Type

R404a, R407C, R22

Control

Thermostatic expansion valve

Compressor

Type

Hermetic scroll

kw

27.15

36.2

42.4

53

Evaporator

Type

Shell and tube

m³/h
Water flow

15.77

20.67

24.24

30.26

L Capacity

450

580

580

750

Pipe diameter of chilled water

DN65

DN65

DN80

DN80

Condenser

Type

Shell and tube

m³/h
Water flow

20.43

26.88

31.51

39.34

Pipe diameter of Cooling water

DN65

DN80

DN80

DN80

Power

2.2

2.2

2.2

4

m Lift

21

21

19

24

Protection System

High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.

Dimension

mm L

2200

2500

2000

2900

mm W

1160

1460

2000

2000

mm H

1900

2000

1750

1900

Weight

kg

1150

1200

1380

1450

NOTE:
1.Normal conditions:Chilled water inlet temp is12℃,outlet temp is 7℃,Cooling water inlet temp is 30℃,outlettemp35℃。
2.Temperature condtion:Chillerd water range is 7℃--30℃,Fouling factor: 0.018m2·℃/KW;
3.Input power:3P-380V-50HZ,Allowable buctuate voltage:±10%.Allowable voltage difference in phase:±2%
4.Actual head lift is pump head lift minus the machine internal head loss(1mH2O=9.8KPa);
5.The above parameters are based are Refrigerant R22,for other parameters of Refrigerant R134A,R407C ect.refrigerants,plcontact us.
6.Due to technology updating, size ¶meters listed data may change;The above datas are for reference only,please feel free to contact us for the latest data.

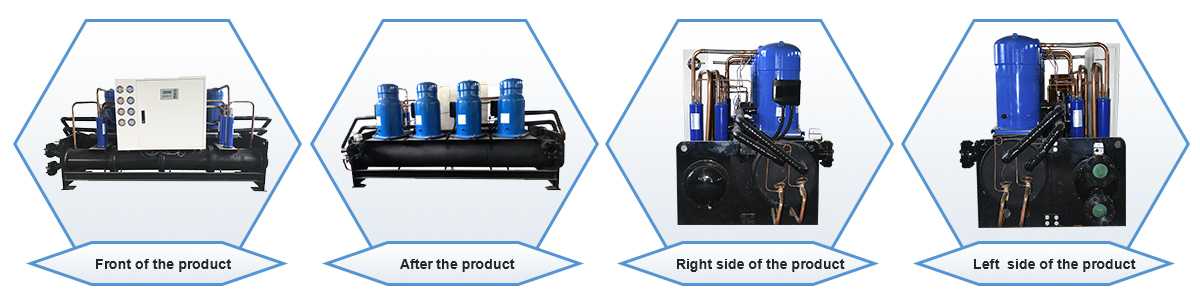

Details





Structural



Refrigeration System

Blue is refrigeration system; Black is water circulation.


User Installation System

“A” is our chiller
