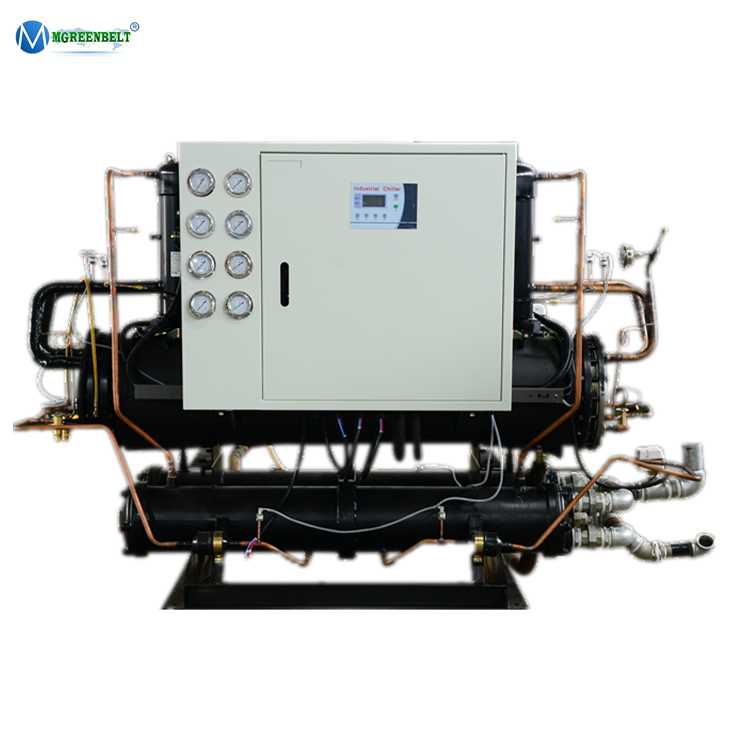

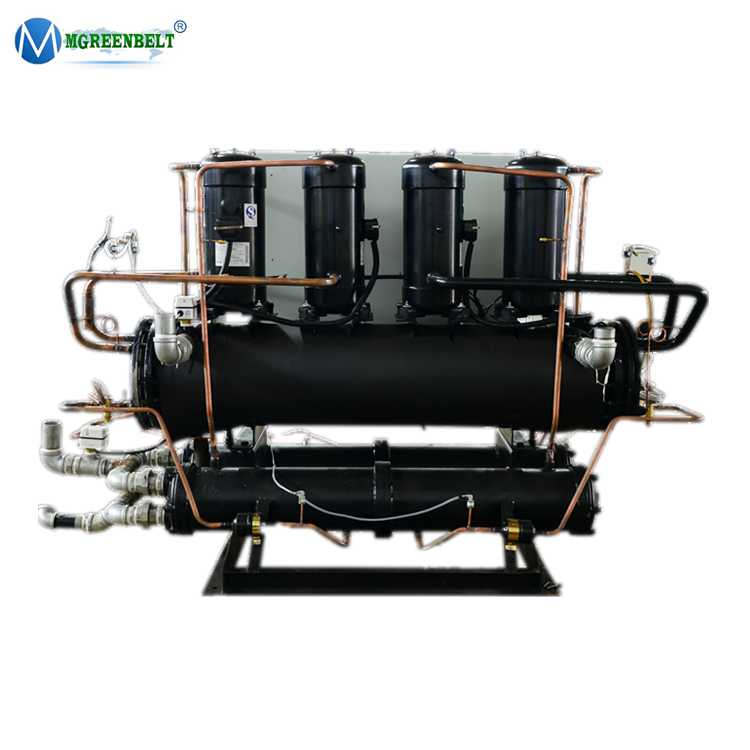

Open Type 40HP Water-cooled chiller

Characteristic

Voltage: 3PH~220V/380V/415V~50HZ/60HZ

Refrigerant: R410a/R407c/R134a/R22

Condenser: High efficiency copper tube shell and tube type

24/7 Online Support

86-17686681005

Description

1. Cooling range: 5 °C ~ 35 °C.

2. Water tank made of SUS304 stainless steel.

3. P.I.D temperature control, temperature control is accurate and reliable.

4. Using an independent anti-freezing temperature controller to prevent freezing.

5. Compressors and pumps are equipped with overload devices.

6. Low and high voltage switch control, flexible and adjustable, well protects the compressor.

7. Hydrophilic chip condensers to have better heat exchange effect.

8. shell and tube evaporators with large heat exchange capacity and stable heat exchange effect.

9. Refrigerant: R22, environmentally friendly refrigerant R410A/R407c/R134a is also optional.


Application:

Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.

Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc

Plastic molding industry - The Water Chiller is to provide a cooling process for better industrial production. In plastic molding industry.

Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.

Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.

Paper and related – printing machine, labelling machine, cardboard making, plastic film machine, etc.

Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc.


Parameter



Model

MG-40W(F)

Power Supply

3 Phase-380V-50Hz

Outlet Temperature

7 deg C ~+35 deg C can be control.

Cooling Capacity

Kw

120.6

Kcal/h

103716

Refrigerant

Type

R404a, R407C, R22

Control type

Thermostatic expansion valve

Compressor

Type

Hermetic scroll

Quantity

4

Power(kw)

36.2

Evaporator

Type

Shell and tube Or Tank with coil

Chilled water flow(m3/h)

20.67

Inlet/outlet pipe dia.(mm)

1-1/2”

Pump

Power(Kw)

2.2

Type

Shell and tube

Condenser

Cooling water flow(m3/h)

2-1/2”

Dimension

L*W*H(mm)

2500*10002000

N.G

Kg

1200

Protection system

High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.

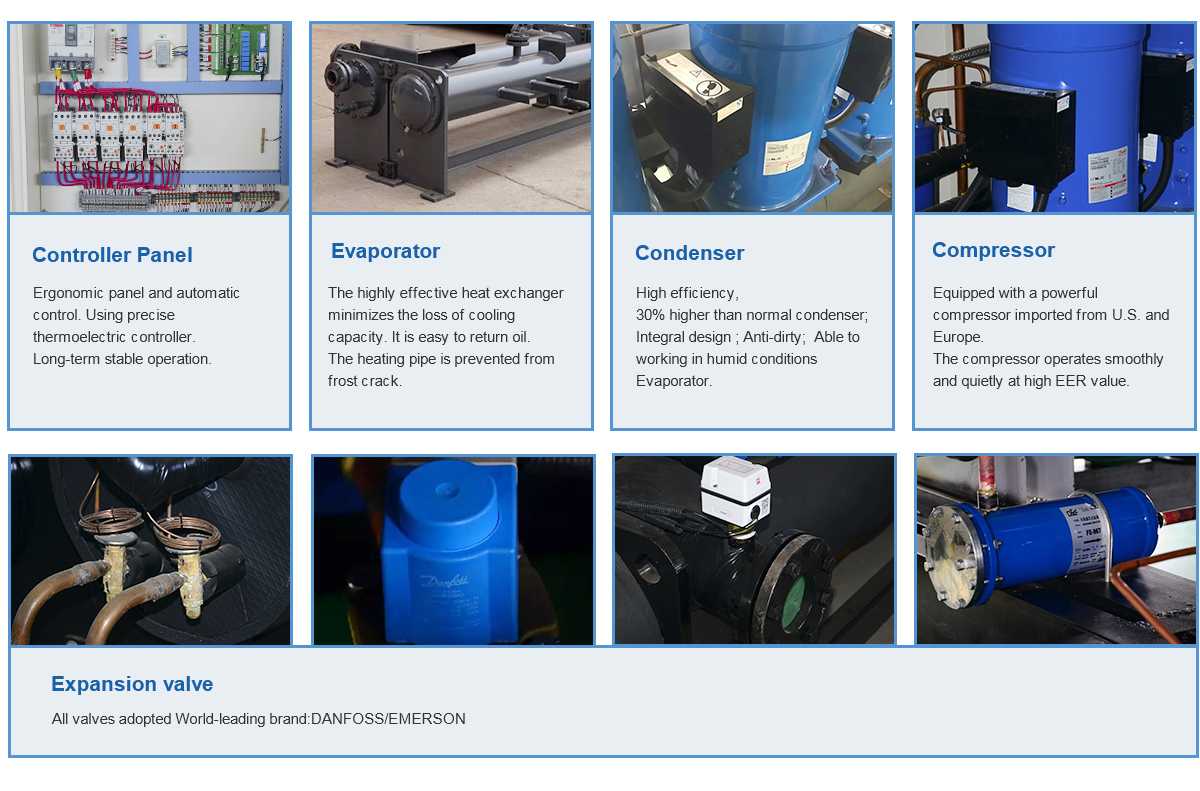

Details





Structural

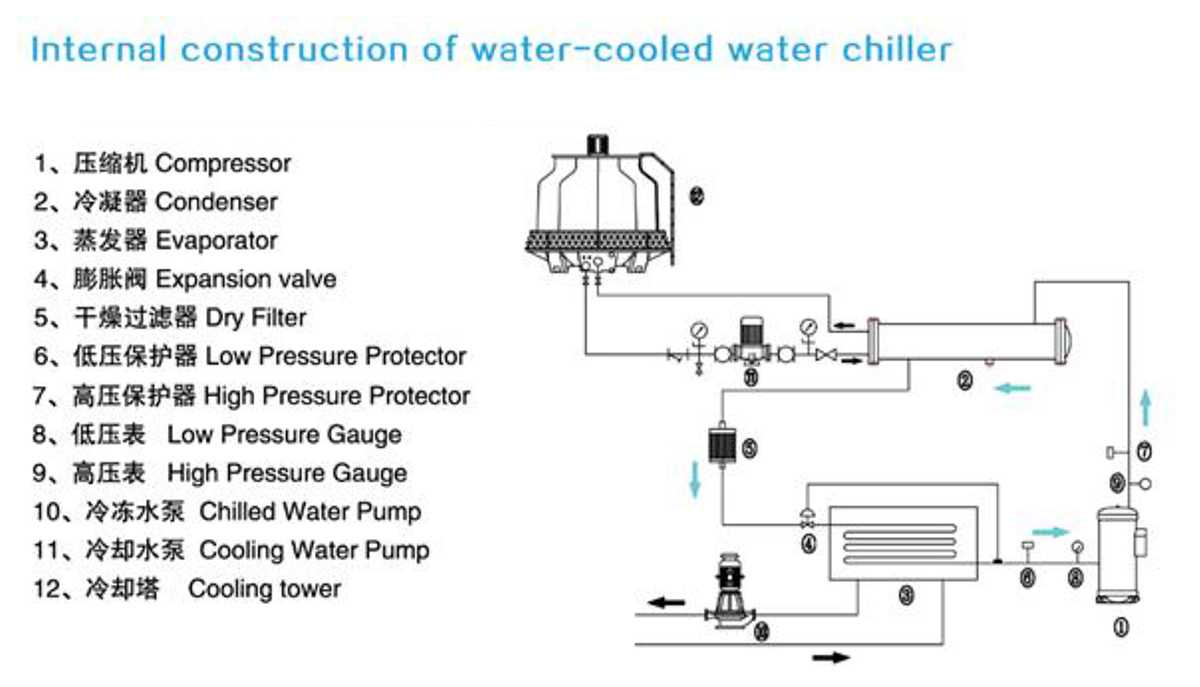

Refrigeration System

Blue is refrigeration system; Black is water circulation.

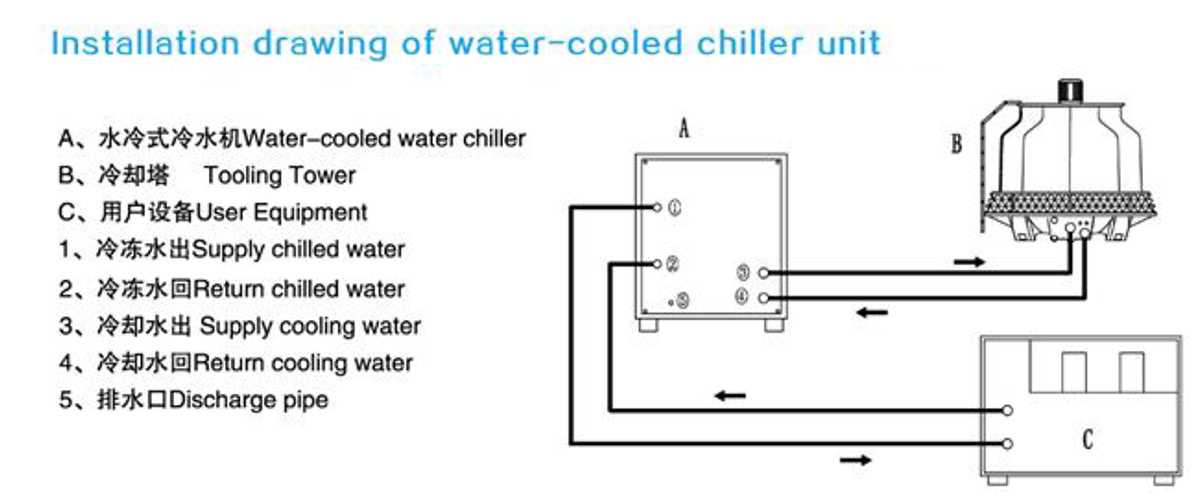

User Installation System

“A” is our chiller
