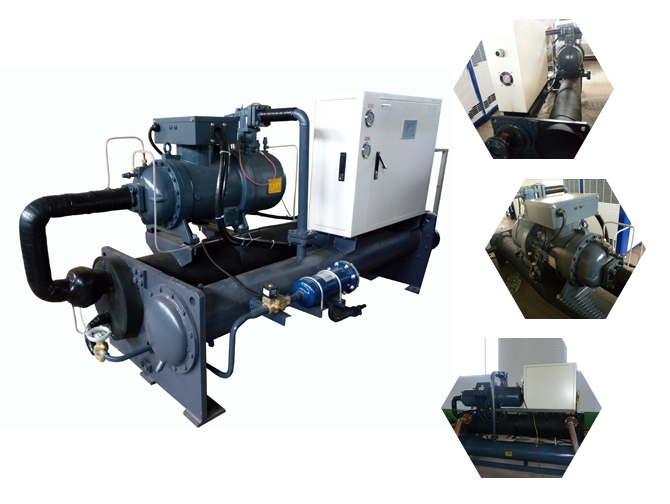

30HP 40HP Water Cooled Chiller

Characteristic

Cooling capacity: 20 Ton to 30 Ton

Temperature control 7 to 35℃, 0℃,-5℃,-10 to -40 iotional

Shell and tube evaporator and condenser

Bizer or Hanbell semi-hermetic screw compressor

Optional refrigerant R134a,R407c and R410a

Safety protection devices of whole screw chiller

All models and cooling capacity available

24/7 Online Support

86-17686681005

Description

This model uses the world's first -line brand compressors ,PLC programmable controller ( human-machine interface ), high-effciency energy-saving profile oxidation special evaporator ,and the world's first-line brand electronic expansion valve that can be automatically and accurately adjusted according to the load , in the past 15 years , our company has continuously improved its manufacturing processes, accumulated rich production experience ,equipped with advanced and complete inspection and inspection equipment ,and continuously strengthened its management system , which has made Shandong products truly stable,long-lived , and energy-efficient . Low, safe operation ,simple and so on .


The MG series of air cooled water/water cooled chillers offer the most advanced design to satisfy today's industrial cooling requirements.

The entire range is assembled with components developed with well know manufacturer. The complete MG series of packaged air cooled /water cooled chillers offer max efficiency together with total reliability and are manufactured to the highest quality standard.

This new generation of water chillers is built on years of experience, the result of which is the MG series which incorporates many major advanced standard features that other suppliers charge as extra.


Application


MG-WS series Water Chiller are widely used in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Ultrasonic wave cooling, Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT Industrial chiller is a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications.



Parameter

Screw Water Cooling Chiller(Single Unit)Series

Model

MG-90W

MG-125W

MG-165W


Capty

USRT

26.2

35.8

46.6

Kcal/h

79120

108360

141040

KW

92

126

164

Power

3PH-380V-50Hz


Refrigerant

Type

R22

Control

Thermostatic expansion valve

Comperssor

Type

Semi-closed screw type

kw Power

23

32

39

Start

Y-

Capacity

25-50-75-100% or 25-100%


Evaporator

Type

High efficiency copper tube shell and tube type

m³/h Flow

15.8

21.6

28.1

Inlet/Outlet

DN50

DN65

DN80

Condenser

Type

High efficiency threaded copper tube shell and tube type

m³/h Flow

21.7

29.8

38.3

Inlet/Outlet

DN50

DN65

DN80

Protection System

Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.

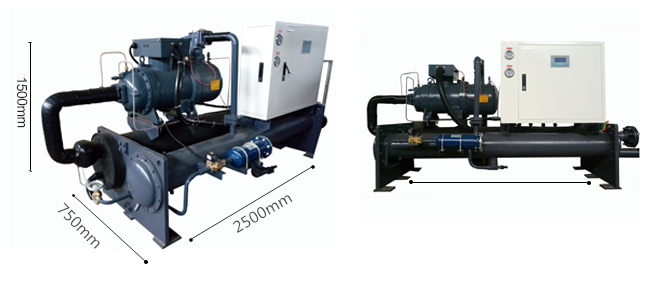

Dimension

L

2300

2500

2500

W

750

750

750

H

1500

1500

1500

Weight

kg

660

700

800

Main Specification:

1) .Cooling capacity from 7℃ to 35℃, or if need lower outlet temperature please inform us change the offer;

2) .Stainless insulated water tank and anti-freeze thermostat can provide from us;

3) .R22/R407c/R404a/R134a refrigerant used as standard for efficient cooling.

4) .Refrigeration loop controlled by high and low pressure switches.

5) .Compressor and pump overload relays.

6) .Tube-in-shell condenser design for quick heat transfer and excellent heat radiation.

7) .Tube-in-shell evaporator for excellent cooling.

Details

Advantage of Screw Industrial Water Cooled Chiller

1. Higher COP due to water cooled lower condensing temperature , usually 35-45C

2. Can be installed indoor and outside house

3. Water cooled screw chiller just need small size

4. Require external cooling tower for condenser, ensure higher cooling efficiency

5. widely used in large cooling project, very suitable hot ambient temperature




Structural
