Portable Air Chiller 5HP Water Chiller

Characteristic

Cooling capacity:13.1Kw

Outlet temperature: -10C ~ +30C, can be adjusted on the chiller control panel

Electric power supply available: 3PH-208V/220V/380V/415V/460V-50Hz/60Hz

Temperature stability ±0.5 ℃ to ±2 ℃

Built-in SS water tank and water pump

Easy installation and operation

Compact design with portable wheel

Low maintenance cost


24/7 Online Support

86-17686681005

Description

A portable air-cooled chiller is also named portable chiller or mini chiller, is a kind of air chillers with compact design and casters. Portable air chiller can move from one place to another for easy installation and maintenance due to its small chiller size and cooling capacity

Portable air cooled chiller developed by MGREENBELT come with complete refrigeration including a compressor, air-cooled condenser, water tank, water pump with water piping system, electrical contractor & overload replay, thermostatic expansion valve, digital temperature controller and air blower.

Portable air cooled chiller designed by MGREENBELT having a cooling capacity range from 0.5Ton to 6 Ton and temperature control range from 7℃ to 30℃.
For chiller model MG-1C to MG-7C with 1 compressor circuit and MG-8C(D) to MG-25C(D) with 2 circuits, MG-30C(D)with 3 circuits, MG-40C(F), MG-50C(F)with 5 circuits,


Product features:

1). Brand and durable Scroll type compressor: Copeland, Danfoss, or Panasonic.

2).Three type evaporator support different working circuit.

A.Tank with coil, easy clearance

B. Shell and tube, high efficient

C. Brazed plate heat exchanger type( BPHE)

3). High efficient V type condenser: Screw copper tube covered aluminum fins

4). Expansion valve: Emerson

5) .Iron and stainless steel pump for different option

6). Buffer tank installed inside chiller optional

7). Inbuilt iron or stainless steel circulation water pump

8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection.

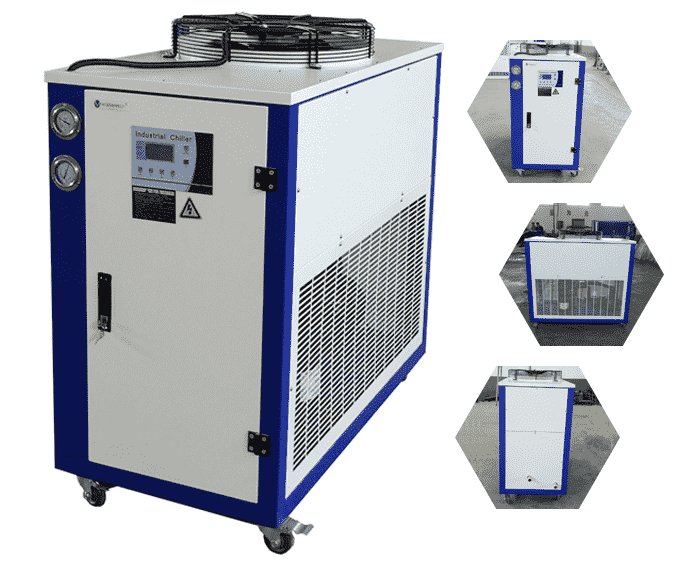

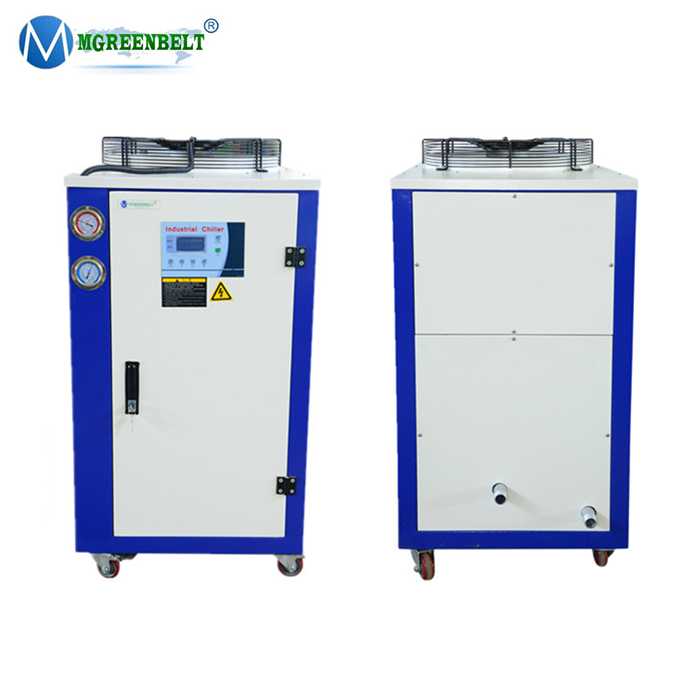

To ensure high quality and good experience to customers, we use the world famous brand of key parts and good material to produce our machines. Pls find the below detailed photoes for further information.


Application:

Our chiller used in many different industries:

Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.

Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc



Parameter


Model

MG-5C

Power Supply

3 Phase-380V-50Hz

Outlet Temperature

+5 deg C ~+35 deg C can be control.

Cooling Capacity

Kw

13.1

Kcal/h

11266

Tons

3.74

Refrigerant

Type

R407c

Control type

Thermostatic expansion valve

Compressor

Type

Hermetic scroll

Quantity

1

Power(kw)

4.54

Evaporator

Type

Tank with coil or Shell and tube

Chilled water flow(m3/h)

2.25

Tank volume

70L

Inlet/outlet pipe dia.(mm)

DN20

Condenser

Type

High efficiency aluminum foll finned type

Cooling air flow(m3/h)

5000

Power(KW)

0.52

Dimension

L*W*H(mm)

1200*700*1200

N.G

Kg

200

Protection system

High/Low Pressure protection , Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection , Anti-frozen protection.

Specification list

Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons

Horse power : 5hp~50hp

Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel

Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz


Details




Mgreenbelt Chiller production:

1)Chilled outlet water temperature: -35℃ to +35℃

2)Cooling capacity: 2.85kw~1750kw(0.8 ton ~ 500 Tons)

3)Cooling way: Air cooled chiller and water cooled chiller

4)Compressor type:Screw type,Scroll type

5)Power supply:1/3PH-200V/220V/380V/415V/460V-50HZ/60HZ

6)Refrigerant available R22/R407c/R410a/R134a

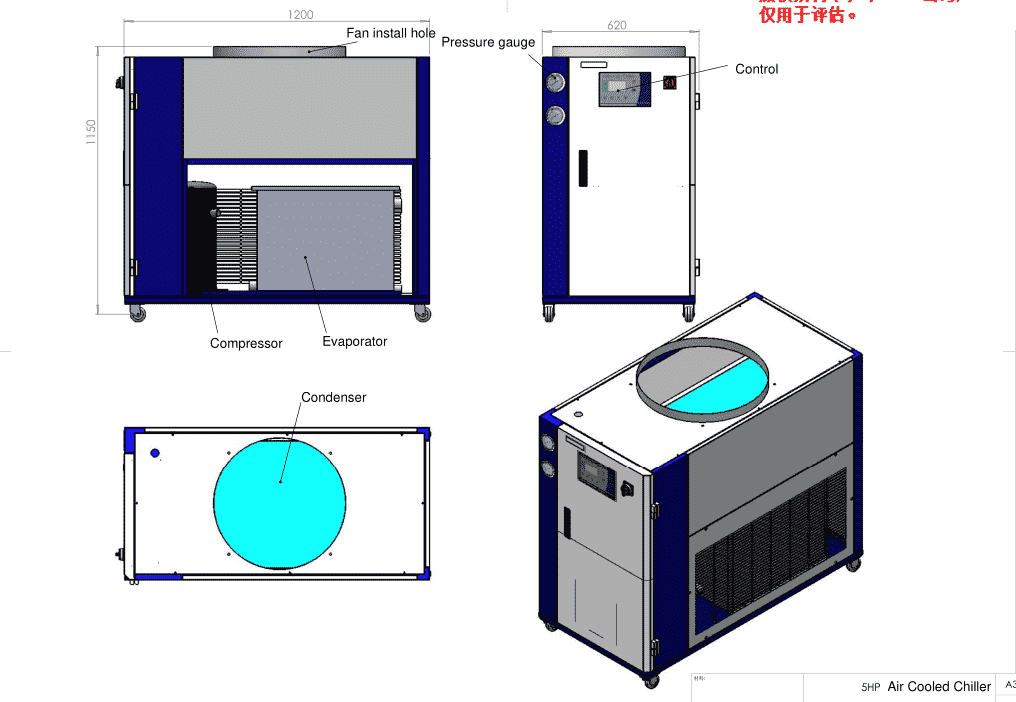

Structural
