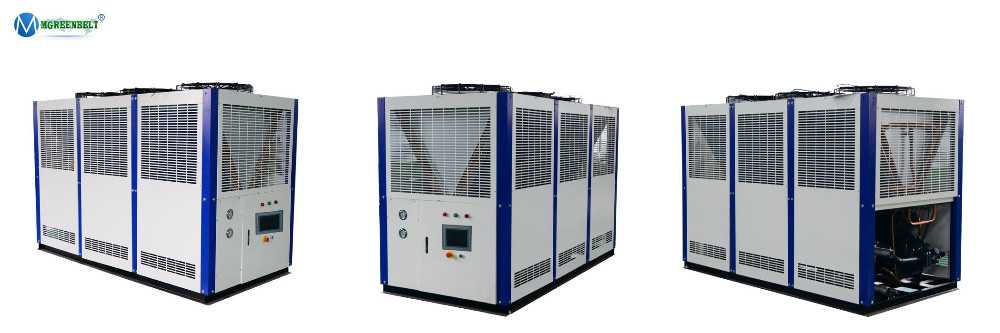

30HP Industrial Air Cooled Chiller

Characteristic

Cooling capacity from 2.7KW to 168KW
Temperature control from 7℃ to 35℃
Temperature stability ±0.5 ℃ to ±2 ℃
Built-in SS water tank and water pump
Shell&tube or SS PHE for optional
Easy installation and energy saving
All models and cooling capacity are available

24/7 Online Support

86-17686681005

Description

Air cooled chiller is short for air chiller, sometimes also called air cooled packaged chiller or portable air chiller and air cooled water chiller.

MGREENBELT supplying a complete line of air-cooled chillers, this air cooled chiller has a cooling capacity of2.7KW to 168KW and water temperature control range from 7℃ to 30℃, while the water temperature stability is +/-0.1℃ to +/-2℃.

Air cooled chiller designed and manufactured by MGREENBELT have 3 or 4 refrigerant circuits for air chiller models from MG-30C(D) to MG-60C(F)

Each circuit can work or stop independently for chiller safety and energy saving consideration.

Air cooled chiller from MGREENBELT consists of a scroll compressor, air cooled condenser, built-in water pump and water tank to make a complete compressed refrigeration and water cooling system.

For scroll compressor brand, MGREENBELT using Copeland from the USA, Danfoss from France and Panasonic from Japan. All scroll compressors featuring excellent cooling capacity with compressor inner protection and energy saving.

For standard air cooled chiller evaporator,MGREENBELT using 304# stainless steel water tank with a coil, but stainless steel plate heat exchanger and closed loop shell & tube heat exchanger are also available.

It is high efficiency and durable air cooled type condenser using the finned copper tube with aluminum and big air volume cooling fan.

Application:

Our chiller used in many different industries:

Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.

Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc


Parameter


MGREENBELT is professional in air-cooled chiller manufacturing.

MGREENBELT has exported air-cooled chillers to the Philippines,India, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica, Argentina, Colombia, South Africa, Egypt Saudi Arabia, Kuwait,Spain, USA etc.

If you are looking for a high-quality air-cooled chiller manufacturer, please contact MGREENBELT sales for the best price quotation.



Model

MG-30C(D)

MG-25C(D)

Power Supply

3 Phase-380V-50Hz

Outlet Temperature

+7deg C ~+35 deg C can be control.

Kw

83.6

63.2

Cooling Capacity

Kcal/h

71896

54352

Tons

24

18

Refrigerant

Type

R407c

R407c

Control type

Thermostatic expansion valve

Type

Hermetic scroll

Quantity

3

2

Compressor

Power(kw)

9.05*3

10.6*2

Type

Shell and tube Or Tank with coil

Evaporator

Chilled water flow(m3/h)

14.33

10.83

Inlet/outlet pipe dia.(mm)

DN40

DN40

Type

High efficiency aluminum foll finned type

Condenser

Cooling air flow(m3/h)

30000

25000

Power(KW)

0.75*3

0.75*2

Dimension

L*W*H(mm)

2200*1160*1900

2100*1000*1700

N.G

Kg

1150

900

Protection system

High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.


NOTE:
1.Normal conditions:Chilled water inlet temp is12℃,outlet temp is 7℃,Ambient temp35℃;
2.Temperature condtion:Chillerd water range is 7℃--30℃,This series of unit requires the chient to use the liquid with the freezing point below the required temperature as the refrigerant.
3.Input power:3P-380V-50HZ,Allowable buctuate voltage:±10%.Allowable voltage difference in phase:±2%
4.Actual head lift is pump head lift minus the machine internal head loss(1mH2O=9.8KPa);
5.The above parameters are based are Refrigerant R22,for other parameters of Refrigerant R134A,R407C ect.refrigerants,plcontact us.
6.Due to technology updating, size ¶meters listed data may change;The above datas are for reference only,please feel free to contact us for the latest data.


Details

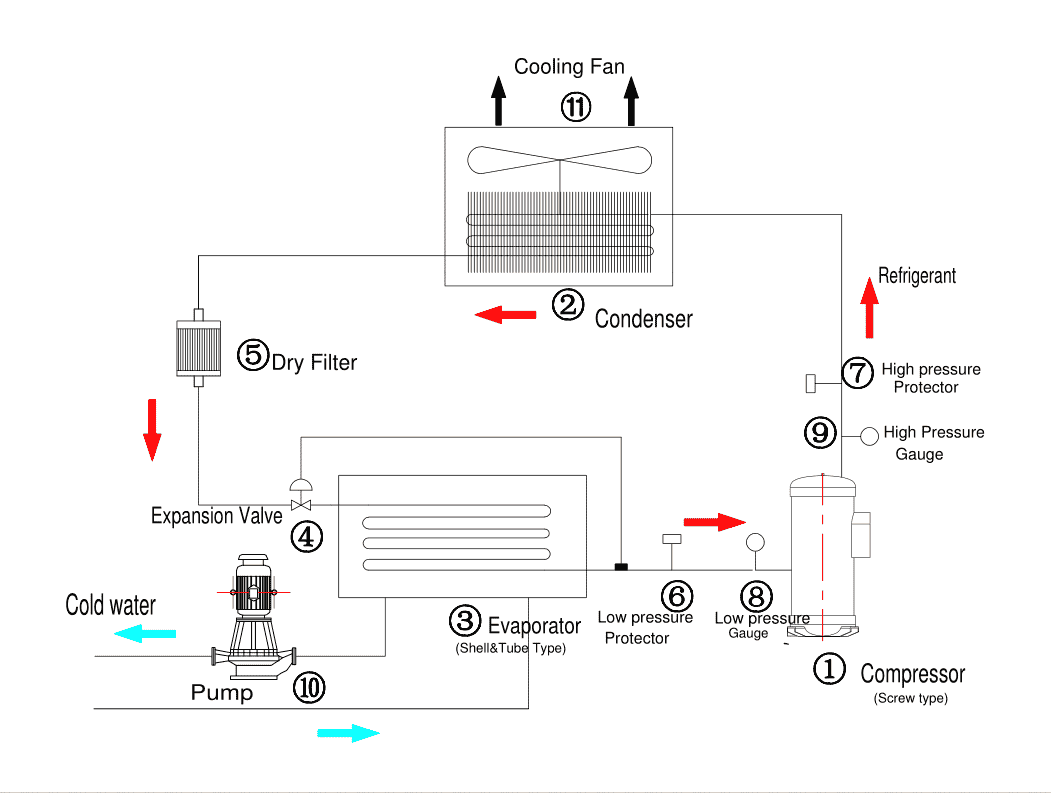

Structural
