10~15 Ton Air Cooled Scroll Chiller

Characteristic

Cooling capacity: 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons

Outlet temperature: -10C ~ +30C, can be adjusted on the chiller control panel

Electric power supply available: 3PH-208V/220V/380V/415V/460V-50Hz/60Hz

24/7 Online Support

86-17686681005

Description

MG air cooled screw chiller widely used in plastic injection, extrusion, plating, mold, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning refrigeration and various aspects of water centralized water supply, especially suitable for the inconvenience for water and the water pipe ground.


Product features:

1). Brand and durable Scroll type compressor: Copeland, Danfoss, or Panasonic.

2).Three type evaporator support different working circuit.

A.Tank with coil, easy clearance

B. Shell and tube, high efficient

C. Brazed plate heat exchanger type( BPHE)

3). High efficient V type condenser: Screw copper tube covered aluminum fins

4). Expansion valve: Emerson

5) .Iron and stainless steel pump for different option

6). Buffer tank installed inside chiller optional

7). Inbuilt iron or stainless steel circulation water pump

8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection.

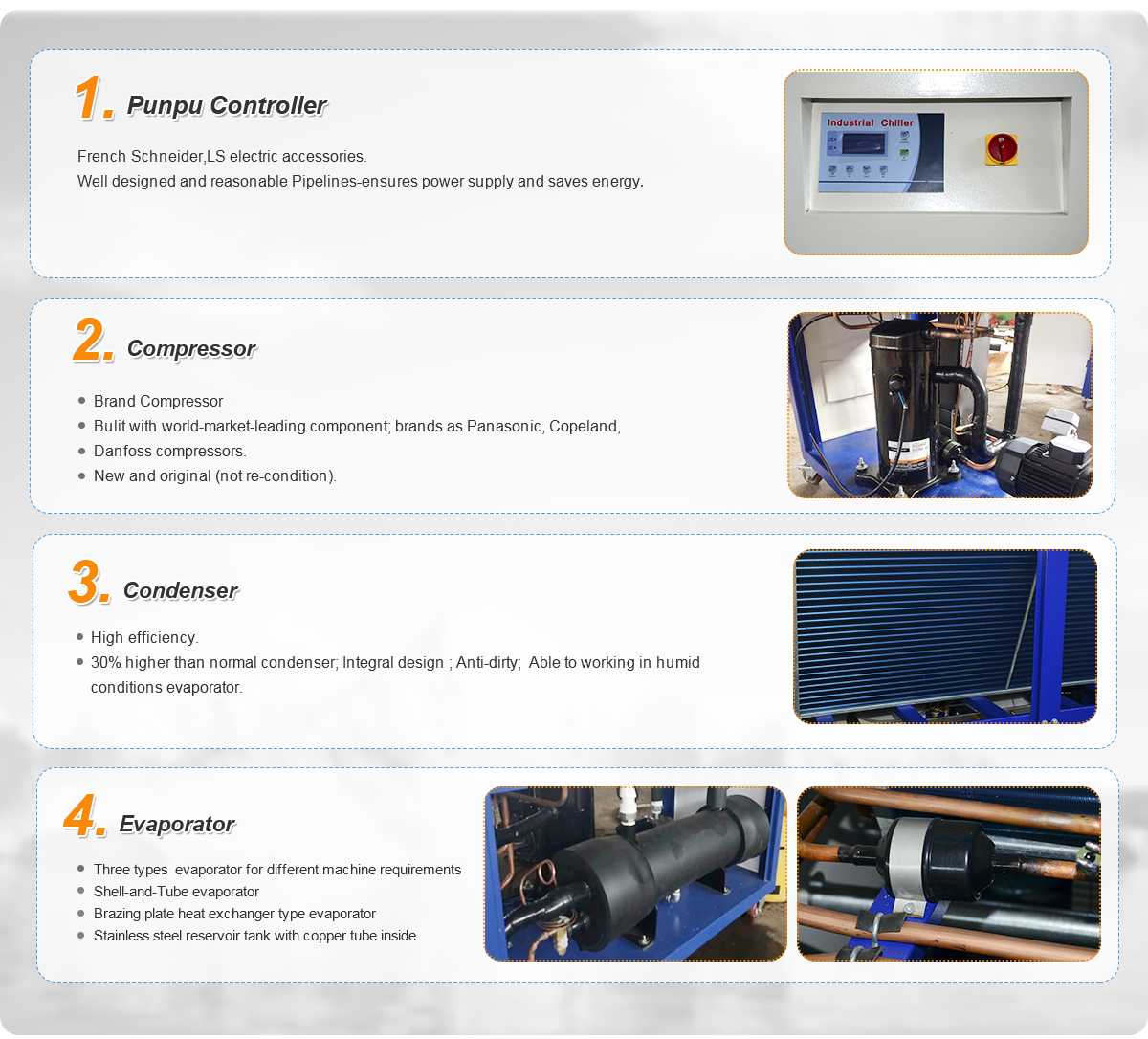

To ensure high quality and good experience to customers, we use the world famous brand of key parts and good material to produce our machines. Pls find the below detailed photoes for further information.


Application:

Our chiller used in many different industries:

Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.

Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc



Parameter



Model

MG-20C(D)

MG-25C(D)

Power Supply

3 Phase-380V-50Hz

Outlet Temperature

+7deg C ~+35 deg C can be control.


Kw

55.3

63.2

Cooling Capacity

Kcal/h

47558

54352


Tons

15.8

18

Refrigerant

Type

R407c

R407c

Control type

Thermostatic expansion valve


Type

Hermetic scroll


Quantity

2

2

Compressor

Power(kw)

9.05*2

10.6*2


Type

Shell and tube Or Tank with coil

Evaporator

Chilled water flow(m3/h)

9.48

10.83


Inlet/outlet pipe dia.(mm)

DN40

DN40


Type

High efficiency aluminum foll finned type

Condenser

Cooling air flow(m3/h)

20000

25000


Power(KW)

0.75*2

0.75*2

Dimension

L*W*H(mm)

2100*1000*1700

2100*1000*1700

N.G

Kg

850

900

Protection system

High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.


Specification list

Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons

Horse power : 5hp~50hp

Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel

Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz

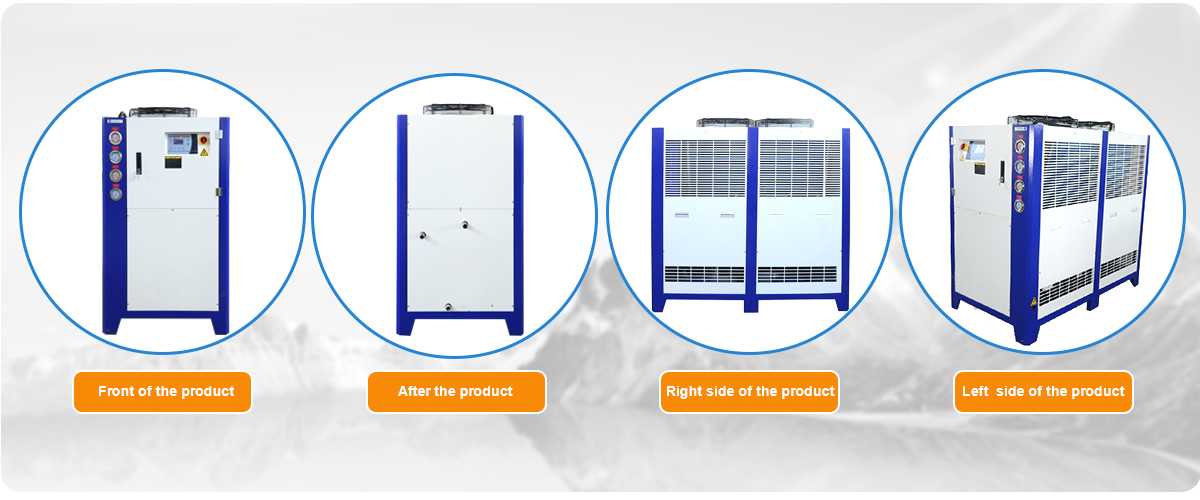

Details




Mgreenbelt Chiller production:

1)Chilled outlet water temperature: -35℃ to +35℃

2)Cooling capacity: 2.85kw~1750kw(0.8 ton ~ 500 Tons)

3)Cooling way: Air cooled chiller and water cooled chiller

4)Compressor type:Screw type,Scroll type

5)Power supply:1/3PH-200V/220V/380V/415V/460V-50HZ/60HZ

6)Refrigerant available R22/R407c/R410a/R134a

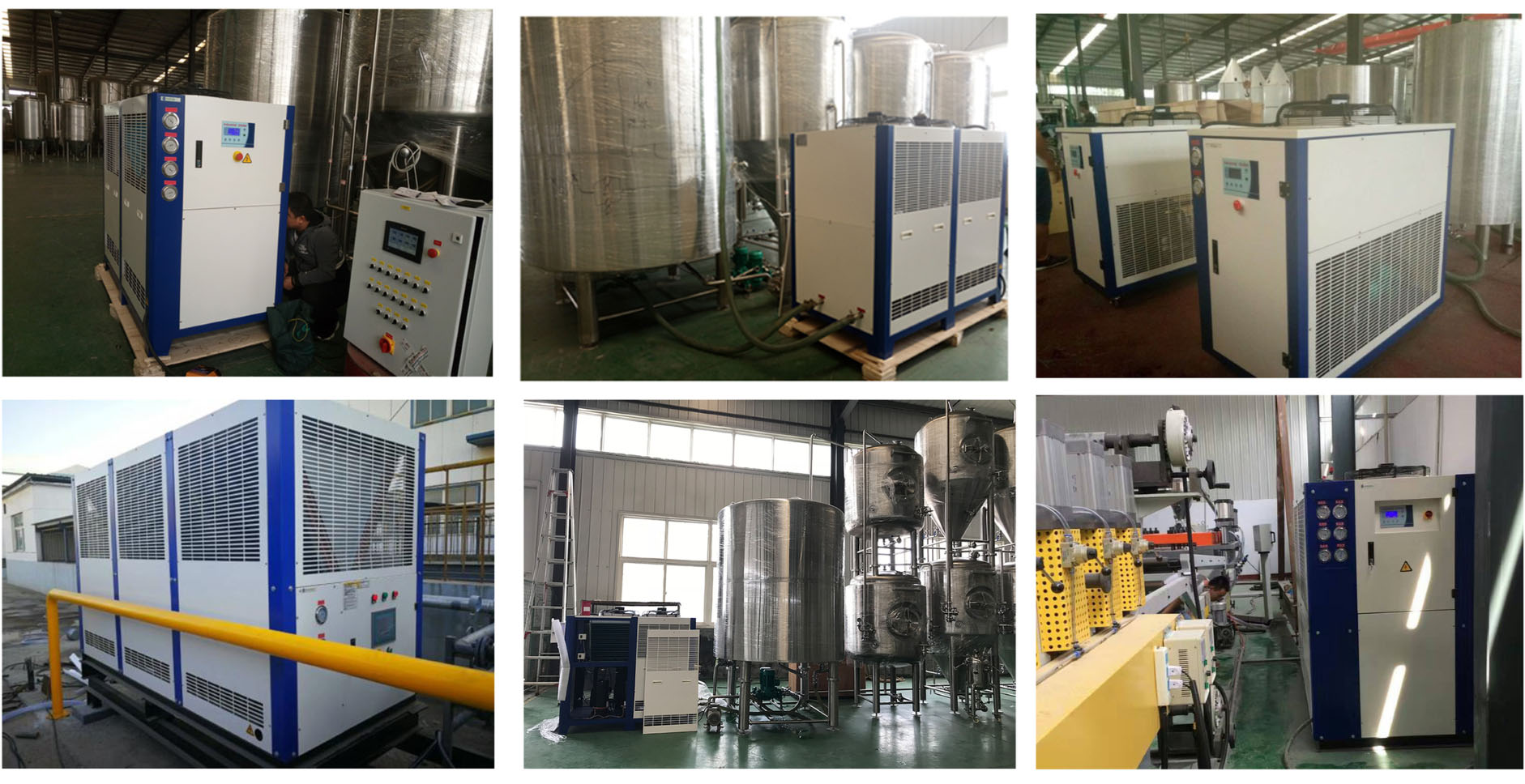

Customer use

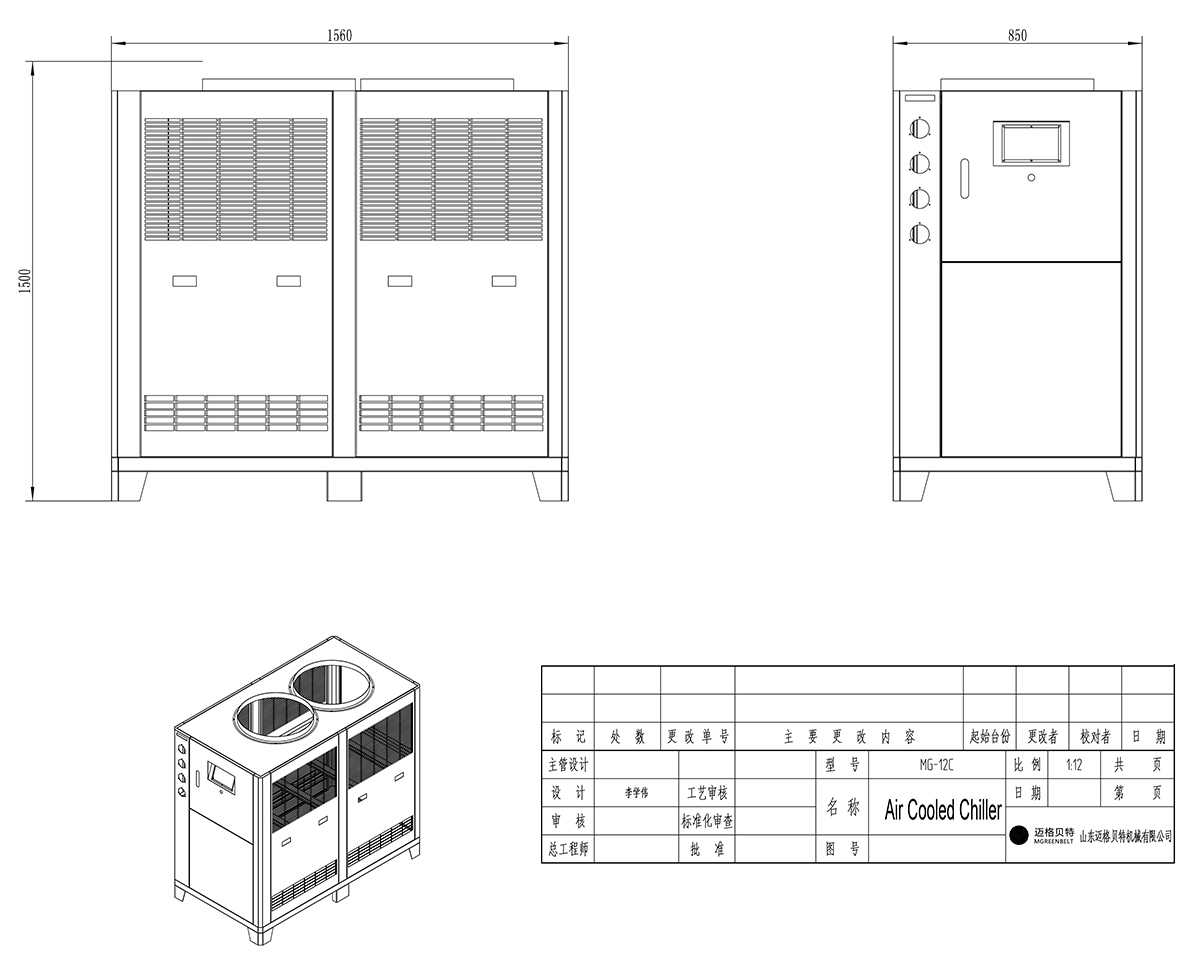

Structural

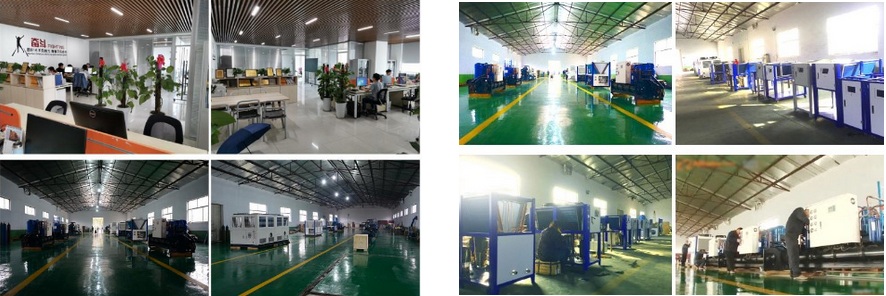

ABOUT US
