20 TR Small Screw Chiller Air Cooling Industrial Chiller For Plastic Injection

Characteristic

  • Outlet water temperature control from 7C° to 35C°
  • Chiller Power Supply Option: 3phase-220v/380v/415v/460v-50hz/60hz
  • Chiller Cooling Capacity: 20 TR / 78 KW /67080 KCAL
  • Semi-hermetic screw type compressor
  • Air-cooled type condenser
  • Closed loop shell and tube evaporator
  • No need to install a cooling tower


24/7 Online Support

86-17686681005

Description

Your Premier Air Cooled Screw Chiller Manufacturer



MG-C series air cooled screw chiller widely used in plastic injection, extrusion, plating, moldhydraulic chemical leather, printing. profiles of oxidation, reaction kettle, chemical fiber, vacuum coating.

paper making. textile, central air conditioning refrigeration and various aspects of water centralized warer supply, especially suitable for the inconvenience for water and the water pipe ground.


1.The Industrial Chiller is mainly used to provide cooling water for high-end industrial equipment, at the same time, also widely used in mechanical processing and manufacturing, plastics and rubber, electrical and electronic, electroplating, chemical medicine, laser, ultrasonic cleaning, printing and other industrial production.

2. According to the different way of heat dissipation,it is named as Water Cooling Type and Air Cooling Type;According to the different structure of compressor, scroll Type,Screw Type, According to the different outlet temperature, it is named as High-temperature Chiller, Middle-temperature Chiller, Lower-temperature Chiller, Ultra-low Temperature Chiller; According to the different overall structure of condensing unit and evaporator unit, it is named as Integrated Type and Separated Type, and so on.

3. All of our cold water equipment have already passed the European CE certification.

4.The device is equipped with European or Japanese Brand compressor, high efficiency shell & tube type condenser, stainless steel water tanks, microcomputer control, high precision temperature control system, over current and over voltage protection system, and some other component and function, super cooling, high efficiency, low noise, simple operation. Also there are single model, double model and quadruple model combination for selecting freely.


NOTE

1.Normal condtions Chied water inlet temp is12. outlet temp is7 , Ambient temp 35;

2.Temperature condtion:Chilerd water range s 7-30 ℃,This series of unit reques the chent to use the quid with the freezing point below the required temperature as the refrigerdant;

3.Input power:3PH+380V-50HZ ,Allowable buctuate votge:±10% Allowabe voltage difference in phase±2%;

4.Aactual head lift is pump head lift minus the machine internal head loss(1mH20=9.8kPa);

5.the above parameters are besed are Refrigerant R22, for other parameters of Refrigerant R134A,R407C ect.refrigerants, plcontact us;

6.Due to technology updating, size ¶meters listed data may change; The above datas are for reference only, please feel free to contact us for the latest data.



Parameter



Model

MG-80CS


Cooling Capacity

USRT

22.2

Kcal/h

67080

KW

78

Power Supply

3PH-380V-50Hz


Refrigerant

Type

R407c

Control

Thermostatic expansion valve


Comperssor

Type

Semi-Hermetic screw type

Power

29KW

Start

Y-△

Capacity

25%-50%-75%-100%


Evaporator

Type

High efficiency copper tube shell and tube type

Flow(m³/h )

13

Dia Inlet/outlet

DN65


Condenser

Type

High efficiency hydrophilic aluminum foll finned type

Flow(m³/h )

27000

Protection System

Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.


Dimension

L(mm)

2350

W(mm)

1450

H(mm)

2400

Wight

kg

2150

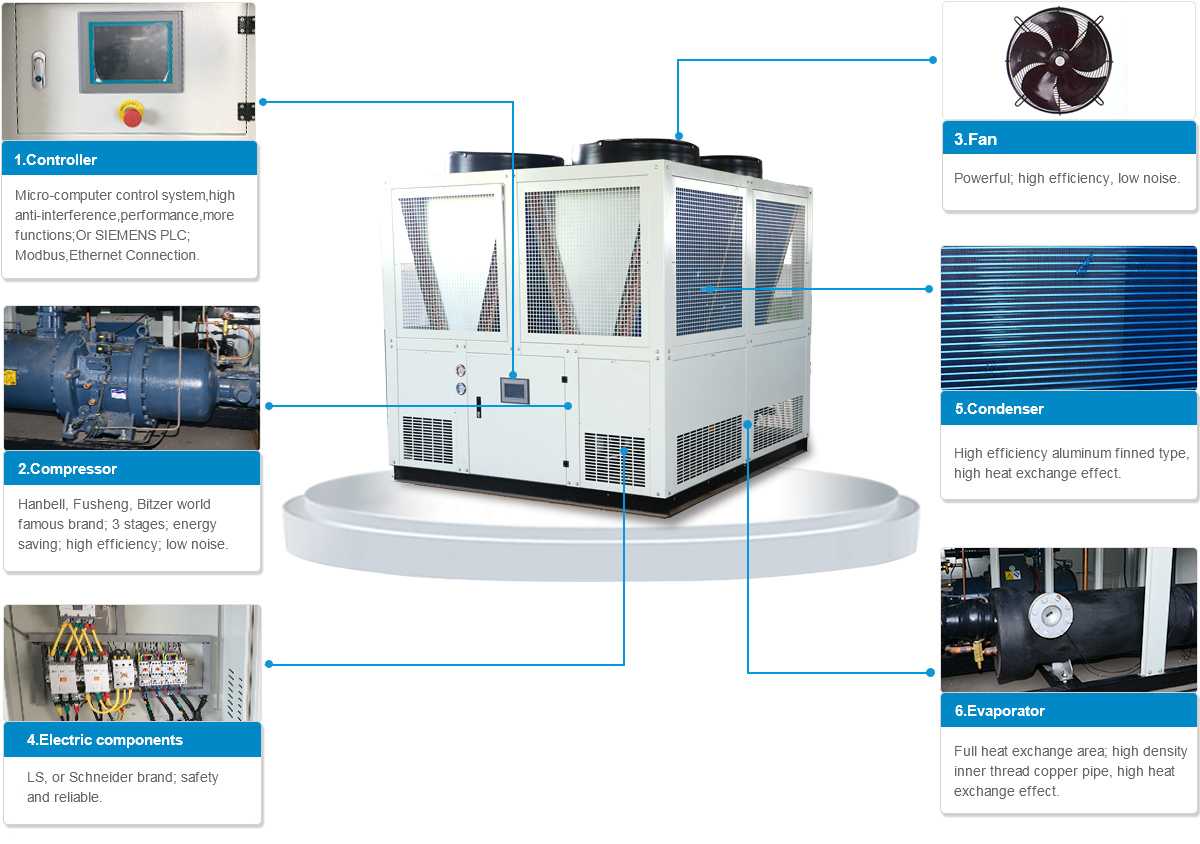

The Feature:

The main international advanced semi-closed screw compressor in which electric motor and compressor are organically integrated to ensure no leakage of the shaft sealing;

*Cooling capacity control available at four steps(100%-75%-50%-25%),three steps(100%-66%-33%)or no steps control system;

*Evaporator built with high efficency shell and tube type heat changer.Condenser built with seamless copper tubes mechanically expanded into aluminums fins;

*External rotor type axial fans;

*High efficiency, low noise and vibration, easy to install;

*Controlled by microcomputer way;


Details



1.The Industrial Chiller is mainly used to provide cooling water for high-end industrial equipment, at the same time, also widely used in mechanical processing and manufacturing, plastics and rubber, electrical and electronic, electroplating, chemical medicine, laser, ultrasonic cleaning, printing and other industrial production.

2. According to the different way of heat dissipation,it is named as Water Cooling Type and Air Cooling Type;According to the different structure of compressor, scroll Type,Screw Type, According to the different outlet temperature, it is named as High-temperature Chiller, Middle-temperature Chiller, Lower-temperature Chiller, Ultra-low Temperature Chiller; According to the different overall structure of condensing unit and evaporator unit, it is named as Integrated Type and Separated Type, and so on.

3. All of our cold water equipment have already passed the European CE certification.

4.The device is equipped with European or Japanese Brand compressor, high efficiency shell & tube type condenser, stainless steel water tanks, microcomputer control, high precision temperature control system, over current and over voltage protection system, and some other component and function, super cooling, high efficiency, low noise, simple operation. Also there are single model, double model and quadruple model combination for selecting freely.

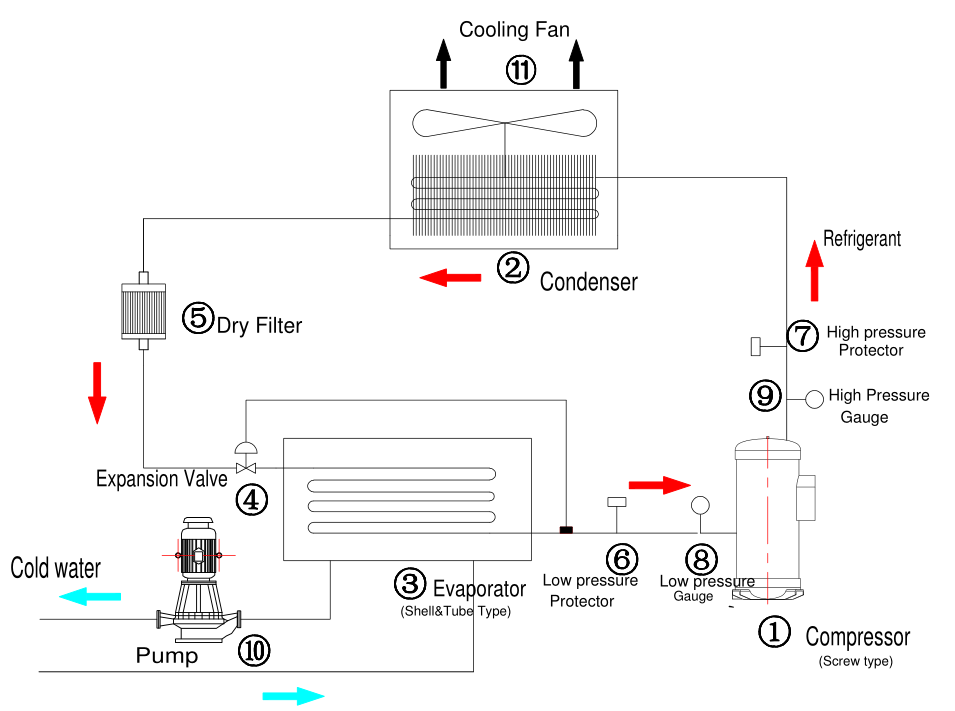

Structural
